Case

Basic information

The scale of this broiler farm project is find out about the estimation of raising 25,000 broilers on broiler floor system, and the customer plans to harvest a weight of 2kg. In order to ensure enough living space for the chickens, we design to breed 15 broilers per square meter. The dimension of broiler floor system is designed to make the birds have a healthy living. The dimension of the broiler house is 112m long, 15m wide and 2.5m high

The breeding cycle of broilers is short, the use of broiler floor system can minimize the initial investment cost, and the use of automatic feeding and drinking lines can reduce labour costs, a chicken house only needs 1-2 workers to ensure lesser load of work in the poultry farm. Broiler floor system is a method adopted before the invention of cage. This process involves the raising of chicken on the floor which is commonly known as slatted floor raising

First of all, the quantitative advantage is very clear. Cage farming mode can breed more than three times flocks in the same chicken house area than the flat raising. So, the density of flat rearing chickens is relatively small. Only if the chicken houses are relatively large, then you may breed more chickens. This type of broiler farming is adopting the floor system to raise them. It can save the area of chicken house and increase the amount of broiler quantity

Secondly, when raising chickens in a floor raising mode, the chickens can directly contact the ground. Therefore, the faeces produced by the chickens are also directly on the ground. Broiler floor system is made of high-strength, wear-resistant polypropylene, the poultry flooring is designed for cage free chicken farm to replace wood floors in poultry house. Broiler poultry flooring system can separate poultry and manure, thereby inhibiting bacterial reproduction and growth

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. The broiler floor system is compliant and accessible to animals of any age. The feeding pan allows an easy use for the animal and an easy inspection and maintenance for the operator. Broiler has access to the right amount of food that allows continuity and uniformity in their growth

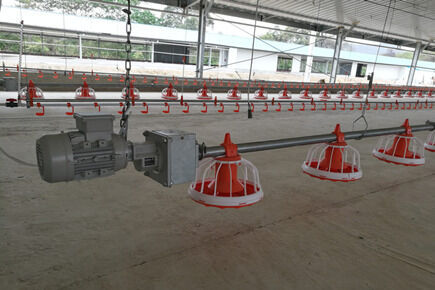

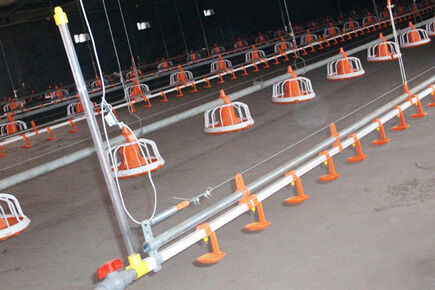

2. The broiler floor system has a drinking and feeding system which consists of tubes that run the entire length of the available area and provide the correct amount of water through the nipples equipped with saving drop caps that prevent water from falling to the ground, keeping therefore the litter dry

3. It has a ventilation system which is customized according to the needs of the environment to ensure growth and productivity. The lighting system is designed to provide the correct amount and intensity of light which is essential for the ideal development of the animal

4. The broiler floor system combines the characteristics of feeding, drinking, lightning and environment to guarantee productivity and growth of the chicken

5. Broiler floor system is strong and durable and is made of high impact solid polypropylene, with high impact resistance and abrasion resistance

6. Clean and hygienic, it is easy to clean the plastic structure is anti-corrosive, anti-microbial and easy to discharge waste

Advantages

1. It helps in determining the holding capacity of a particular rearing pen and avoiding overstocking or under-stocking

2. It helps to prevent space-related losses

3. It enhances the welfare and performance of the flock

4. It eases planning such as pen design plan and feeding plan

5.  Advanced designing concept of environmental control system meets local climate requirements

6. The controller is easy to operate leading to a high degree of automation

7. Reasonable grille design of feed pan can effectively reduce the waste of feed and avoid the death caused by cage stocking

8. The key components are of international well-known brands leading to stably running

9. Effectively reduces the pellet feed breaking

Our services

1.  We offer the detailed information about our product and services

2. We offer the best equipment which meets our customer’s every requirement

3. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solution. And customers can be rest assured

4. We give customers detailed information on the product they want to buy

5. We give guideline to our first time customer’s on how to go about their poultry farm

6. After purchasing our poultry equipment, we do follow up on our customers about the equipment they purchased

Frequently ask questions

Q: What is broiler floor system in poultry?

A: This broiler floor system is commonly practiced for rearing birds for hatching eggs production, particularly meat-type breeders. Here, a part of the floor area is covered with slats. Usually, 60% of the floor area is covered with slats and rest with litter. Feeders and waterers are arranged in both slat and litter area

Q: What do you place on the floor for broilers?

A: lay plastic plates 0.6m on the broiler floor system above the ground in the breeding area of the chicken house. Chicken manure falling into the net can reduce the infection of digestive tract disease, especially the control of coccidiosis

Q: Can broilers be raised in cages?

A: Broilers can be housed on deep-litter, slatted or wire floor or cages. However, cage, slat and wire floor rearing of broilers are not as popular as litter floor rearing, due to problems like breast blisters, leg weakness and higher initial investment

Q: How much space do 100 broiler chickens need?

A: Provide 6 to 10 inches of feeder space and at least 4 square feet of space per chicken
