The layer poultry farm project is established to meet the need of our customers and to introduce our chicken cage system into their poultry farm, which will enhance the chicken living and save poultry farmers from lots of labour. This project is starting from raising 20,000 chicks 20,000 layers. There are two acre two chicken houses which have been constructed, the chicken cage system has been installed and ready for use

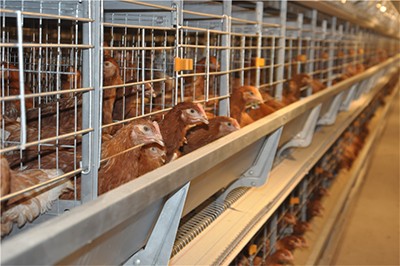

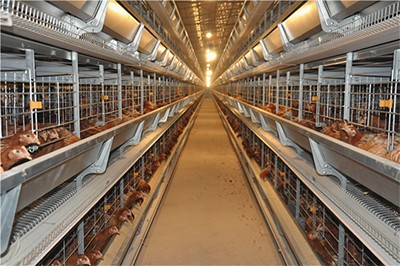

The layer house uses 3 rows 4 tiers chicken cage system. Each row is 42 sets and the total of 126 sets. Each set can feed 160 birds, total breeding 20,160 birds. It has lower level for concrete structure and the upper level for steel structure. So the chicken manure can fall into the bottom of the ground directly, no chicken manure pollution. The reason is that the design of the chicken cage system is that it provides a comfortable environment for the chicken

The chicken house size is as follows, the length is 100.0m width is 12,0m and the height is 2.5m, and it uses automatic drinking system, automatic feeding system and temperature control system to ensure the healthy growth of chicks. The chicken cage system is in housing chickens that are raised for meat consumption or laying of egg and this type of chicken’s are called the broilers or the layers

They are used in different part of the countries. The chicken cage system is currently produced is goes through a hot-dip galvanizing process which is commonly used to make chickens play a better role in the more reflected in these aspects feeding process The chicken cage system is a kind of cage which is designed to confine the chickens until they are ready for consumption or for egg laying, which is convenient for poultry farmers to raise chickens and collect eggs, the cages used in a poultry farm are usually layer cage system

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Components

Nipple drinking system

Feeding grooves

Medication tanks

Galvanized steel

Adjustable foot plates for leveling

Features

1. To protect birds from adverse climatic conditions

2. To ensure easy and economic operation

3. To ensure scientific feeding in a controlled manner

4. To facilitate proper micro-climatic conditions in a near vicinity of bird

5. Effective disease control measures

6. To ensure proper supervision

Benefits

1. Chicken cage system helps to increase development and weight gain

Lighting has been shown to be a key input in healthy chicken development. Light fixtures promotes the growth and feed conversion in the poultry farm, it helps to increase the weight gain of the layers

2. It helps to increases flock uniformity and feed conversion

One of the features of chicken cage system is that it can help to improve bird weight, flock uniformity, and feed conversion. With this fixture it is crucial to have a proper production dimmer and a well-thought-out lighting program. The dim-blue light is used to calm the birds and reduce condemnation. The full spectrum with enhanced red gets birds up and moving, promotes weight gain, and increases long term of living

3. It regulates the reproduction cycles and faster maturity

It helps make it easy to provide a natural daylight simulation for improved productivity, dim–red light fixtures have proven to decrease the time to peak production by stimulating ovulation via the release of reproduction stimulating hormones, sunrise/Sunset simulation eliminates the stress inputs of switching lights on and off abruptly which can lower mortality and support immune response. The red spectrum helps maintain circadian rhythms and promotes sexual maturity. Light fixture was built to help regulate reproduction cycles and generate faster maturity for the poultry

5. It provides an animal welfare friendly environment and increase feeding

The animal welfare audits measure availability of feed for the birds and monitor flock uniformity in order to determine the overall welfare of the flock. The feeder control pan light is designed to attract birds to the main or control feeder pans. This fixture generates light at poultry specific wavelengths and draws in the birds to encourage feeding. The increased feeding activity at the control pan keeps the feed lines full resulting in evenly distributed feed for the entire line

6. High level of automation

It consists of fully automatic feeding, drinking water, manure removal, cooling of cooling curtains, standardized management, automatic control system, saving energy consumption, improving labor efficiency, reducing manual service feeding costs, and further improving the farm’s High efficiency of feeding in poultry farming equipment

Our services

1. We offer the detailed information about our product and services

2. We offer the best equipment which meets our customer’s every requirement

3. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solution. And customers can be rest assured

4. We give customers detailed information on the product they want to buy

5. We give guideline to our first time customer’s on how to go about their poultry farm

6. After purchasing our poultry equipment, we do follow up on our customers about the equipment they purchased

Frequently ask questions

Q: Why is it necessary to keep chickens in chicken cage system?

A: The reason is because the chicken cage system helps to keep the chickens separate from their waste and easier to keep them free from diseases and viruses

Q: What is a chicken cage system?

A: The word "chicken cage system" simply refers to the structure or house that your chickens live in

Q: What are the benefits of using chicken cage system in a poultry farm?

A: It helps to keep the chickens healthy and free from the spread of disease

Q: How does it help in providing ventilation for the chickens in the poultry?

A: The chicken cage system is designed in a way that can provide proper ventilation to the chickens and protect them from lacking oxygen and the poultry cage has openings that can supply fresh air to the chickens
