Case

Basic information

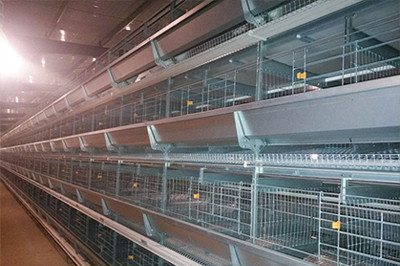

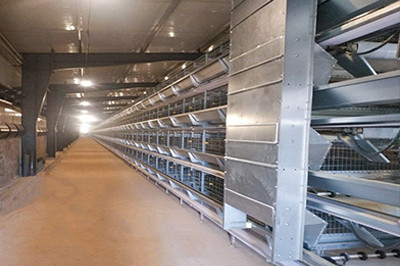

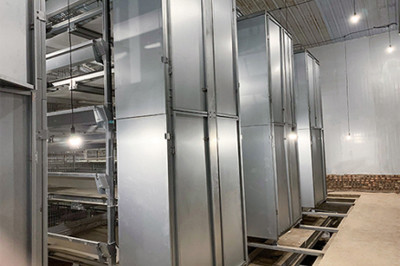

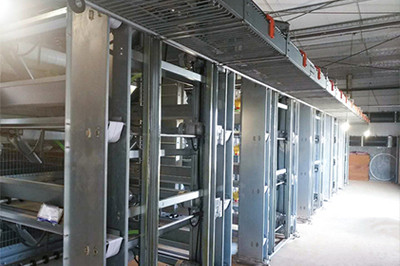

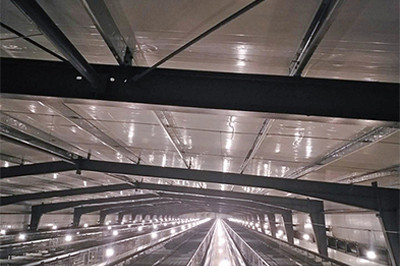

This project of 34,000 layers was officially carried out in other to help our customers, who have little or no idea about poultry farming using an automatic chicken cage system to have understanding about it. The method in which the layers can be housed is as follows, 4 layers and 5 rows with egg collection, manure removal system and feeding equipment. The breeding number of the layers is around 34,000 in a single building, and the house has an environmental control which is longitudinal ventilation system

This project uses Luoto 4 rows and 5 tiers automatic layer chicken cage. The length of the chicken house is 88.0meters, the width is 10.0 meters and the height is 4.0meters. The breeding capacity in a single house is 34,000 birds. The automatic layer chicken cage has a nipple drinking systems which allow the chickens to get water by pecking at a nipple. A trough runs along the length of the layer cage which makes feeding the hens very easy. The floors of layer chicken cages are sloped so that eggs roll down toward the troughs on one end of the cage, where the eggs are then carried away via conveyor belt

The automatic layer chicken cage comes with a feeding trough which is located on both side of the cage, and food is generally always available to the chickens. They must push their heads and necks through the wire mesh. The layer house is equipped with automatic layer chicken cage structure system which is made by 275gsm steel sheets with good corrosion resistance which keeps a long service life. With automatic drinking dosing system, there is no need to worry about the health problems of chicken drinking water. With automatic feeding systems, evenly deliver feed to each chicken

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. The automatic layer chicken cage is able to meet current bird space standard. It has a modular belt cage system that offers easy shipping, improved egg roll-out and simplicity

2. It has a sturdy construction, composite mesh floor and metal door latch

3. Other requirements include proper ventilation, solid rod floor support with tighter floor mesh spacing

4. It should be rugged, durable and made from galvanized steel. Look for one with full front horizontal doors and innovative interlocking parts

5. More important features are cage warranty, easy access to interior, water and feed

6. Make sure the cage has a good slop for egg roll out a choice of different high of 3 to 12 high

7. Nipple drinkers are installed at an easy-to-reach height that enables the birds to consume water in an ideal and healthy manner

8. The feeding trough is made from a premium material that prevents rust and therefore lasts longer. They are remarkably lightweight, resistant to corrosion, and makes feeding very efficient

Advantages

1. It saves more cost because of its much lowered investment

2. .it saves more space and raises a greater number of chickens reared per unit. It helps in identifying poor producers and prompt culling

3. It is easy to deliver and install in a client’s farm

4. It is designed as layer chicken house, it can help in production of clean eggs because the egg conveyor system can deliver all eggs from different houses to egg storage room, feed efficiency and egg weight are better in caged chickens

5. It has control over parasitic disease and worm infestation because the caged birds can make better epidemic prevention

6. Prompt steps to control feed wastage because of the longer design feed trough edge

7. The automatic layer chicken cage method of housing is ideal for the area of moderated climate conditions where the day temperature in summer is not high or fall too low

8. Egg production of caged layer was reported to be more than those kept in deep litter system

9. The overlap parts is smaller so the chicken house can get much better ventilation, it can be used both in open or close house according clients’ needs

10. It has a better protection against corrosion, the drinking nipple has a v-channel and each hen can easily reach two nipples

Our services

1. We offer the best poultry equipment which can meet our customers every requirement

2. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured

3. We recommend suitable products based on customer’s availability resources

4. We provide free house design to help customer build well-structured and modern pen

5. We offer training to our customers for those who have no knowledge about poultry business

6. Our poultry equipment’s are made with high and durable materials

Frequently ask questions

Q: What is required in layer house and what is the most important thing to put in order when using automatic layer chicken cage?

A: layers need to be housed in a clean and dry environment. The automatic layer chicken cage needs to have some form of protective siding (such as 1-inch chicken wire), a roof, ventilation, and a form of heating and feeding and watering equipment

Q: What can be found along-side the automatic layer chicken cage and what is the usefulness of it?

A: The components is as follows, the automatic feeding, drinking, manures cleaning, egg collecting and environment control, can help to improve working efficiency and save labour cost

Q: How does the automatic layer chicken cage help provide ventilation for the chickens in the poultry?

A: The automatic layer chicken cage is designed in a way that can provide proper ventilation to the chickens and protect them from lacking oxygen and the poultry cage has openings that can supply fresh air to the chickens
