Case

Basic information

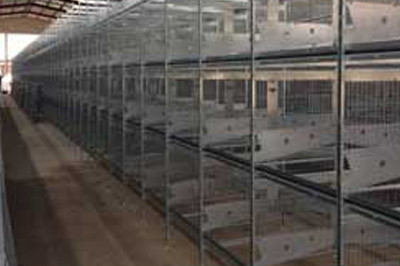

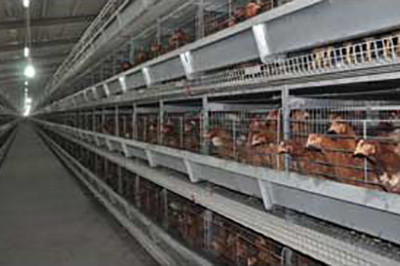

The layer cage system is made with small metal wire mesh which is fully hot-dip galvanized and it is introduced into the ongoing layer project of 500,000 birds in middle east.This layer cage system for poultry is the most commonly arranged in three rows of identical small metal wire cages connected together like cells, hence the name. Further, these rows are stacked on top of one another. This formation is called tier cage. In this housing system, hens have access to automatic management-controlled feed and water

Further, the wire cage floor of the layer cage system is sloped so that eggs roll down to the egg tray for easy automated collection. Similarly, hens’ droppings fall through the wire cage floor either onto a conveyor belt or into a pit for disposal. While the space provided for each hen varies across each farm, to put things into perspective, the space available to each hen in a layer cage system is often described as less than the size of a sheet of A4 paper

The layer cage system helps in increasing air ventilation, two or three seasons in a year because the poultry house close to the ocean, so during hot season and rainy season, high temperature, rainy days and high humidity is controlled by opening the chicken house in order to increase ventilation space. It is more helpful for chicken growth and egg production than closed house. Reducing cost, the chicken house in most of countries design to high-rise structure and opening type, like two tiers, reduce much cost because of no need to pay the money of the side walls

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1.Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2.Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3.Pullet chicken cage

 96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4.Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5.Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6.Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. This system involves rearing of poultry on raised wire netting floor in smaller compartments, called cages, either fitted with stands on floor of house or hanged from the roof

2. It has been proved very efficient for laying operations, right from day-old to till disposal

3. At present, 75% of commercial layers in the world are kept in cages

4. Feeders and water troughs are attached to cages from outside except nipple drinker, for which pipeline is installed through or above cages

5. Auto-operated feeding trolleys and egg collection belts can also be used in this rearing system

6. The droppings are either collected in trays underneath cages or on belts or on the floor or deep pit under cages, depending on type of cages

Advantages

1. It has a feeder that minimize feed spillage

Battery cages make it easy for poultry farmers to care adequately for their chickens, despite this dire need to take care of the chickens, battery cages help the poultry farmer to minimize feed spillage when feeding chickens. It is easy to minimize feed spillage with battery cages because they are designed with standard accessories for holding food and water, especially the amount required for feeding the chickens daily. This disallows any form of feed spillage and wastage. Instead of feed spillage, the chickens keep feeding on the required amount of food specifically provided in front of them

2. It saves space

Farmers having a challenge of inadequate space should consider using poultry cages. A poultry cage allows higher stocking densities even where there is low floor space. You could double or triple your capacity of your pen with the help of cages. Furthermore, if you are interested in increasing or extending your flock size without constructing new pen houses, then getting cages is the best solution

3. High-quality poultry products

Rearing conditions always have an effect on chickens and their end-product quality. These conditions include air flow, sunshine and temperature. With cages, these conditions can be rightly conditioned to facilitate rapid growth of your birds and less exposure to diseases pathogens. Battery cages make automated feeding and drinking system possible. Birds can be provided with clean, fresh water through nipple drinkers, thus preventing contamination and wastage of water. Clean eggs can be collected at any time with less incidence of egg cracks or egg eating. A farmer that incorporates poultry cages into his farm under proper management should be getting more profits

4. Fewer incidences of diseases or infections

It is impossible for chickens to move around when kept in cages and this reduces the possibility of becoming infected with diseases due to interaction with sick birds. Furthermore, the rate of disease transmission is reduced, giving a farmer the sufficient time to handle any outbreak. Additionally, the birds don’t have access to their faeces, thus reducing contamination and transmission of diseases within the flock and poultry house

Our services

1. We offer the best poultry equipment which can meet our customers every requirement

2. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured

3. We recommend suitable products based on customer’s availability resources

4. We provide free house design to help customer build well-structured and modern pen

5. We offer training to our customers for those who have no knowledge about poultry business

6. Our poultry equipment’s are made with high and durable materials

Frequently ask questions

Q: What are the precautionary measures to put in place in layer cage system?

A: The precautionary measure you can carry out in layer cage system is to ensure that the chickens do not come in contact with their manure and there should be no spillage of feed all over the cage in other not to draw the attention of other pests or insects such as ants, rats and cockroach

Q: What are the main benefits of using layer cage system in my poultry?

A: Firstly, it saves the cost of labour, it has a high tendency of egg production, it does not give room to carry out the act of cannibalism and lastly it provides proper ventilation for the chickens
