Basic information

Manure remover for poultry is used to clean a variety of sheds and to remove manure from farm barns, including those used to house chickens. They do an amazing job in terms of reducing the amount of labour required and help to maintain a good indoor air environment so that the animals have a good living space. This, in turn reduces the incidence of the disease

The manure remover for poultry farm is used to clean up manure from poultry house in cages, especially the chicken farm. Manure remover for farm is mainly a longitudinal manure cleaning system designed for the ladder-type cage, each of which can be used for 1-3 rows of manure trenches. The size of the scraping board could be determined according to the size of the manure trenches

Manure remover refers to capture, storage, treatment, and utilization of animal manures in an environmentally sustainable manner. It can be retained in various holding facilities Animal manure (also referred to as animal waste) can occur in a liquid, slurry, or solid form It is utilized by distribution on fields in amounts that enrich soils without causing water pollution or unacceptably high levels of nutrient enrichment. Manure remover is a component of battery chicken cages

Specification list of battery chicken cages

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1.Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2.Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX1.9mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3.Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4.Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5.Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6.Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Customers part of the poultry growing business benefit from our customised solutions, visiting our page of products to learn more

1. Egg laying chicken rearing system

2. Click rearing system

3. Broiler rearing system

4. Other poultry system

The one stop shop and solution of turnkey poultry farm project, contact us to give you full solution from the designing of poultry house, layout and quotation of poultry equipment and cages, delivery and installation...

Specification of manure remover

Power is 1.5 or 2.2kw

Voltage is 220 or 380v

Dimension, L is 2.08m, W is 1.78m, H is 2.03m

Weight is 350kg

2-3 blades

Features

1. It has a high efficiency, low energy and reduces dependability on man power

2. The manure remover for poultry farm is manufactured in stainless steel and hot dip galvanized steel, and the support frame is made of aluminium zinc plate and hot dipped galvanized board

3. It improves the living condition of chickens. Regular manure removal from the poultry cages reduces ammonia levels, which has a positive effect on the health of the chicken

4. With the help of manure remover for poultry farm, it is possible to enhance 90% manure drying

5. It is easy to operate, full automatic and low maintenance fee

Type of manure remover

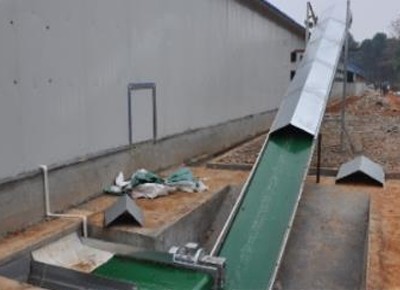

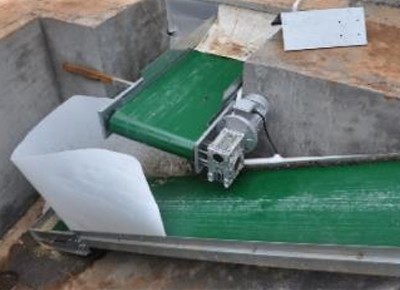

1. Conveyor belt or modular belt conveyor

Conveyors belt uses a single, continuous loop of material. Modular conveyor belt systems use a single loop made of countless interlocked pieces, usually made of hard plastic. These segments can be removed and replaced individually, in contrast to having to discard the entire belt. They are also easier to wash, as well as more resistant to sharp and abrasive materials. This makes modular belt conveyors simpler to maintain and repair than their flat belt counterparts. Modular or belt conveyors are suited to application that involve travelling around corner in fact, they can travel straight ,go around a corner and incline and decline using a single belt and the same motor all throughout technically. Other type of conveyor can also accomplish this feat, but only with much customization and additional cost. Plastic modular belts also allow specific conveyor designs without compromising belt tracing. An example of this is a belt with greater width than length which provides the support required to handle soft plastic bags card board boxes and shrink wrapped goods

2. Tractor scrapper type

Moisture content 50-65% raw material is put into mixing drum dryer by a screw conveyor for downstream drying, the material will be constantly lifting by a lifting plate, then scattered in a high -speed broken devices in the roller, it can fully mixing scattered and break the material, the material and hot air will heat exchange, the water will quickly evaporation and gasifier, the material which achieved the drying effect will be quickly moving and fast discharge under hot air action, and material that do not achieved drying effect will moving slowly under self- weight, the material will fully dry inside the drum have a good drying effect and complete the drying process, and put out by screw conveyor. Inside this, drum dryer is equipped with shaking and cleaning devices, this can prevent material adhesive on dryer body

Advantages

1. Manure remover for poultry farm is collected in such an organized way that you can easily make maximum use of the chicken excrement

2. Removes the manure at a high speed. The cleaning percentage is higher than removing manure by people, thus reducing the disease rate

3. It keeps the poultry house clean, less smelly from manure odour

4. Multi-level power transmission, powerful, and durable

5. The manure remover for poultry farm can clean poultry manure in all seams and consumes minimal energy

6. It is an automatic manure removal system and 60% of time and labour is saved

7. Each machine set works for one to four lines, and costs much less

8. High strength, wearing resistance, and anti-corrosive

9. It will reduce manure disposal costs and can help generate income if manures are sold

10. It offers small friction, producing easy cleaning

11. The manure is remover for poultry farm is efficiently and effectively, saving on labour cost

12. It is easy to install, operate, and maintain

13. It offers a simple and fast temporary manure remover

Our services

1. We give customers detailed information on the product they want to buy

2. We also give guideline to our first time customer’s on how to go about their poultry farm

3. After purchasing our poultry equipment, we follow up our customers about the equipment they purchased and answer any other questions they may have concerning our product

4. We give detailed information about our product and services to our customers

5. We offer the best equipment which meets our customer’s every requirement

6. We are well experienced on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solution and customers can be rest assured

Frequently ask questions

Q: What does manure remover for poultry farm consist of?

A: It consists of corner wheels and cleaning manure remover

Q: What is the benefit of manure remover for poultry farm?

A: It has high strength resistance and anti-corrosive, it easier to operate and maintenance cost is very low and it makes the poultry house clean and less smelly

Q: Is manure remover effective in the poultry house?

A: Yes, manure remover is very effective and can also save labour cost

Q: Can manure reduce disposal cost?

A: Yes, it can reduce disposal cost and it can also help to generate income if sold
