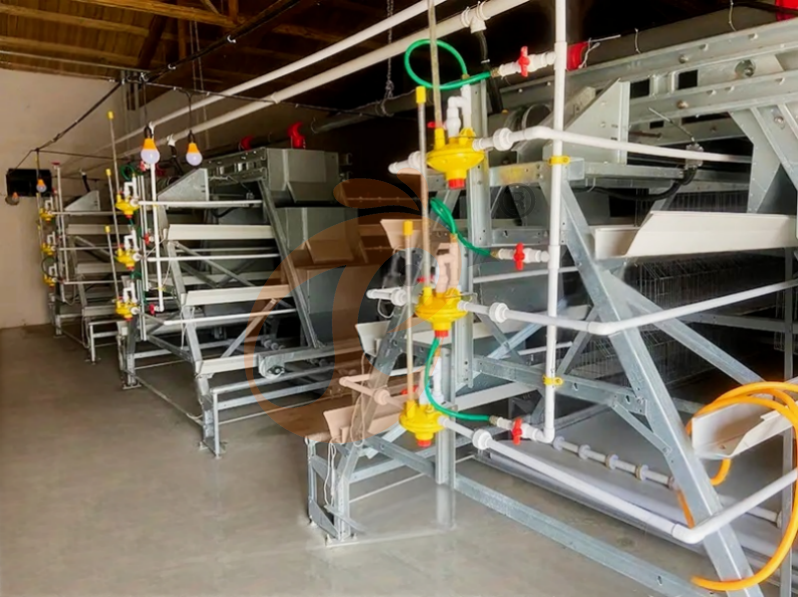

Manual Broiler Harvest, Automatic A Frame Broilers Battery Cage System

To learn more types of battery cage system for broilers and farm equipment, please visit product list...

All pictures (or videos) of this pages are the application of our battery cage system for broilers in customers' poultry farm.

Our technicians have rich experience in localizing farms. Welcome to contact our 24 hours Reception WhatsApp NO. : +8618830120193.

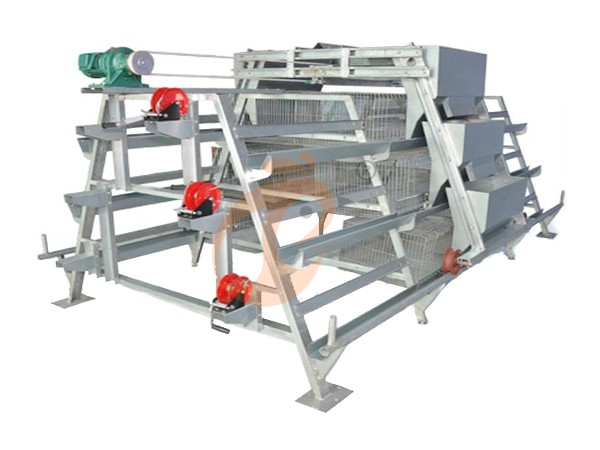

Automatic A frame battery cage system for broilers, starting from brooding and connecting seamlessly to the market.

"European Standard Fully Automatic A Frame Battery Cage System For Broiler"

1. Concise Specifications Of A Frame Battery Cage System For Broiler

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

3 Tiers

3 Tiers, 4 Tiers, 5 Tiers

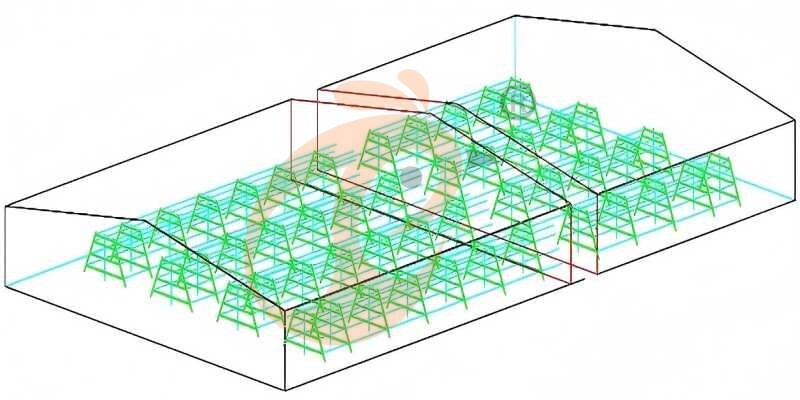

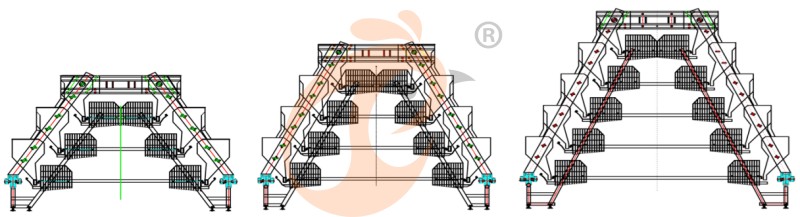

Layout Of Broiler Chicken Cage In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

"Why Choosing Our Fully Automatic A Frame Battery Cage System For Broiler"

2. System Structure & Components Of A Frame Battery Cage System For Broiler

Automatic A frame battery cage system for broilers is composed of cage, frame, automatic feeding, drinking, manure removal systems.

It is designed for farms ranging from 5,000 to 50,000 broilers, with a focus on efficiency, durability, and automation.

(1) Cage Frame & Structure

Frame Of Water, Feeder And Frame

• Material: Hot-dip galvanized steel, coating ≥ 275 g/m², lifespan 15–20 years.

• Tiers: 2, 3, or 4 tiers; each additional tier increases capacity by 30%.

• Capacity per set:

• • 2 tiers: 6,500–8,000 birds

  • 3 tiers: 10,000–12,000 birds

  • 4 tiers: 13,000–15,000 birds

  • ...

• Stocking density: 70–80 birds/m², over 60% higher than floor rearing.

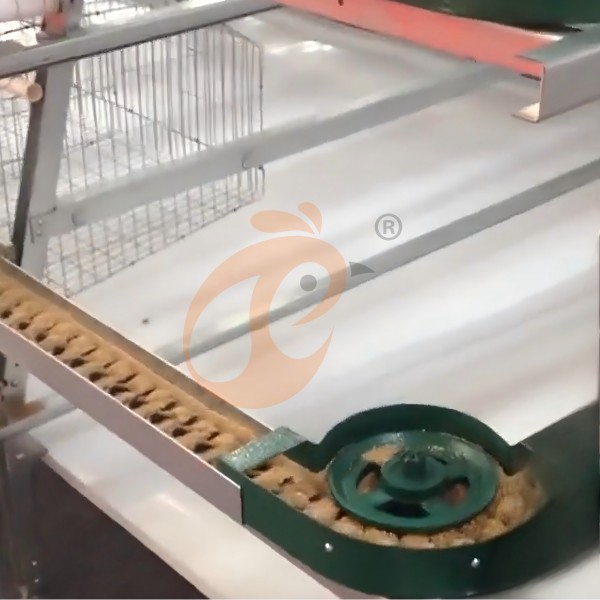

(2) Automatic Feeding System

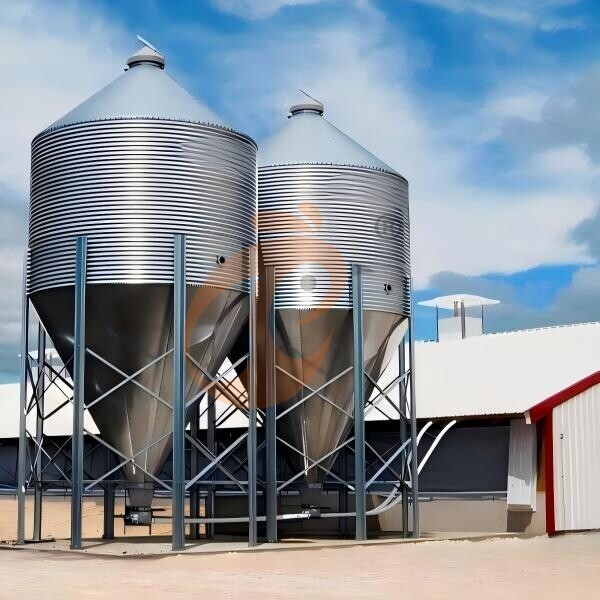

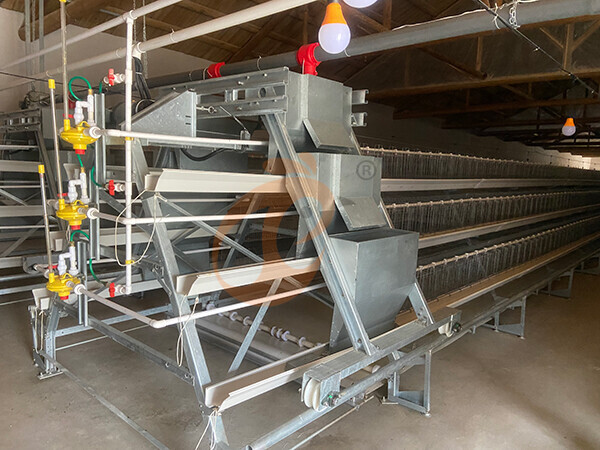

Feed Storage Silo

• Accuracy: Error margin ≤ 3% with timer & photoelectric sensors.

• Feed saving: Improves feed efficiency by 5–8%.

• Benefit: Ensures uniform growth, reduces weight variation, improves flock uniformity.

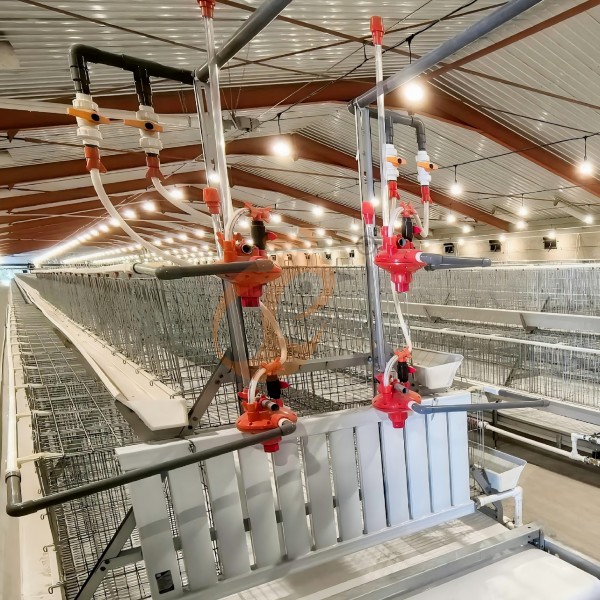

(3) Automatic Drinking System

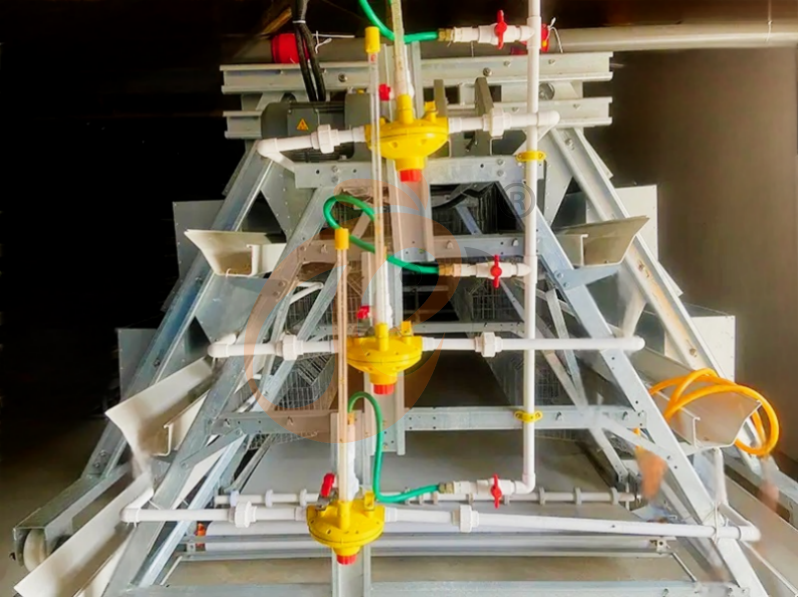

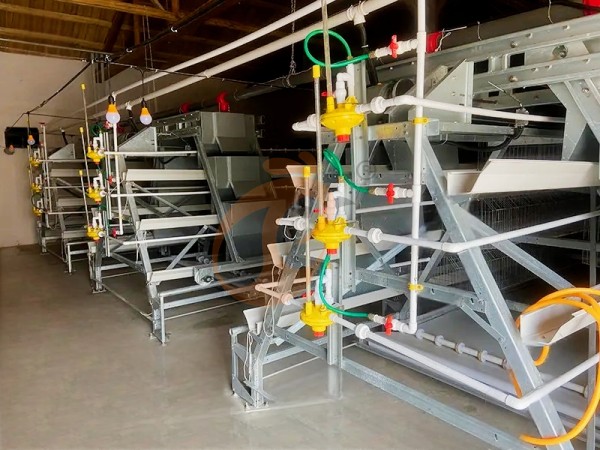

Ending Device And Water Pressure

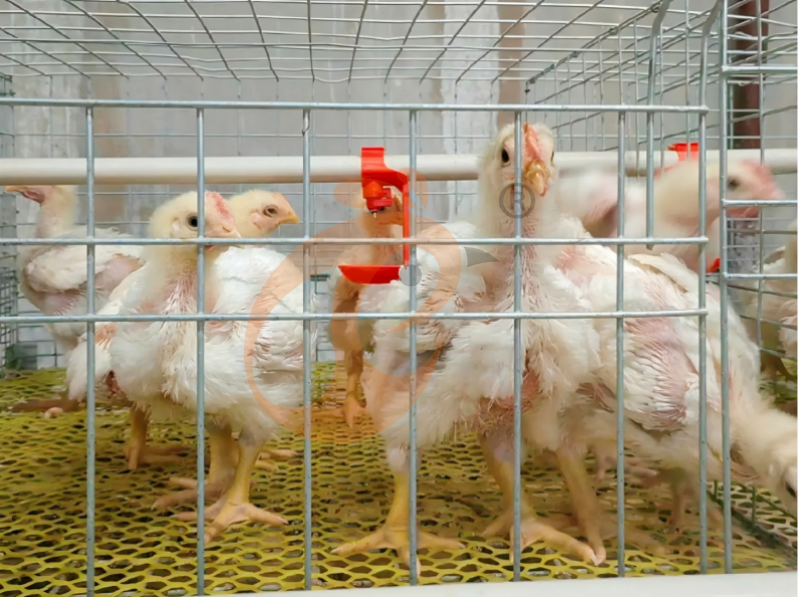

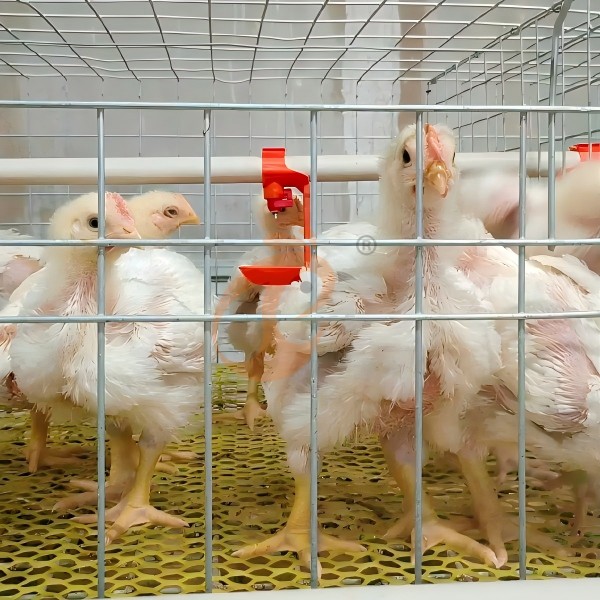

• Drinkers: 2–4 nipple drinkers per meter, 1 nipple per 2 birds.

• Flow rate: 60–80 ml/min per nipple, sufficient for rapid intake.

• Water quality: Optional 3-level filters & medicator, impurity level ≤ 0.05%.

• Benefit: Saves 30% water, reduces disease, increases survival by 5–7%.

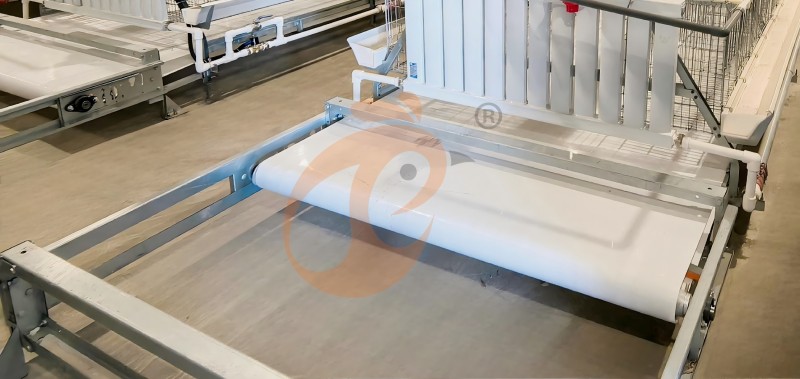

(4) Automatic Manure Removal System

• Material: PVC manure belt, thickness 1.2–1.5 mm, wear-resistant.

• Speed: 5–8 m/min, full cleaning within 15 minutes.

• Frequency: 1–2 times/day, reducing ammonia by 30–40%.

• Eco-value: 10,000 broilers produce 2.5–3 tons of manure/day, easily collected for organic fertilizer.

3. High-Efficiency Management In Later Stages: Full Breakdown Of The A Frame Cage System

Automatic A frame battery cage system for broilers is a sloped multi-layer structure (typically 3–5 layers) that greatly increases the stocking density per unit area.

The core value of this system is not simply its high density, but its ability to provide a fully automated cycle from feeding, drinking, ventilation, to waste removal.

A-Type Cage System Key Parameters

The separation of waste and dry bedding significantly reduces ammonia concentration, improving respiratory health.

"Essential Tips For Managing Poultry Farms And Battery Cage Systems For Broilers"

4. Key Performance Comparison: Not All "Chicken Systems" Are Created Equal

While traditional floor-based systems are flexible, they have inherent drawbacks in terms of space utilization, cleanliness, and environmental control.

Here is a comparison between the A-type battery cage system for broilers and floor-based systems in several dimensions:

Automatic A frame battery cage system for broilers is not just about stacking high densities; it is a system platform that forms a closed loop in chicken health, waste management, and labor efficiency.

5. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.
