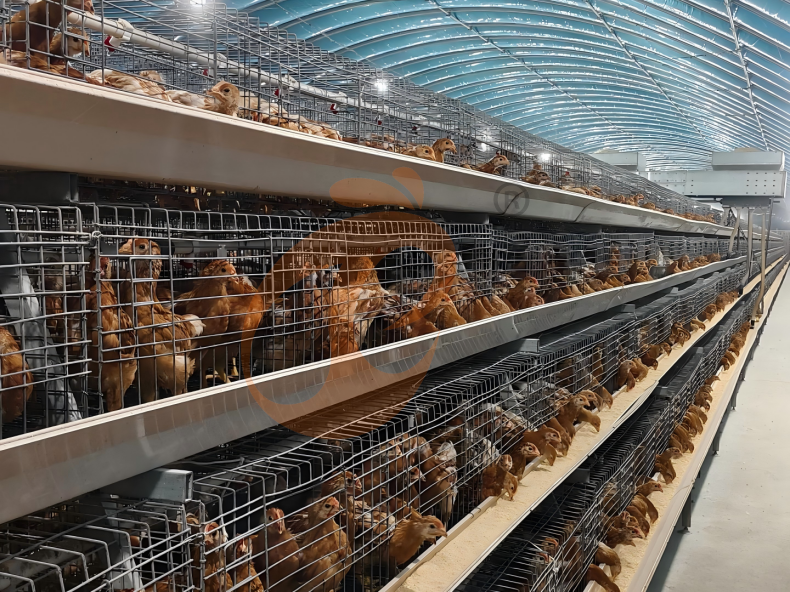

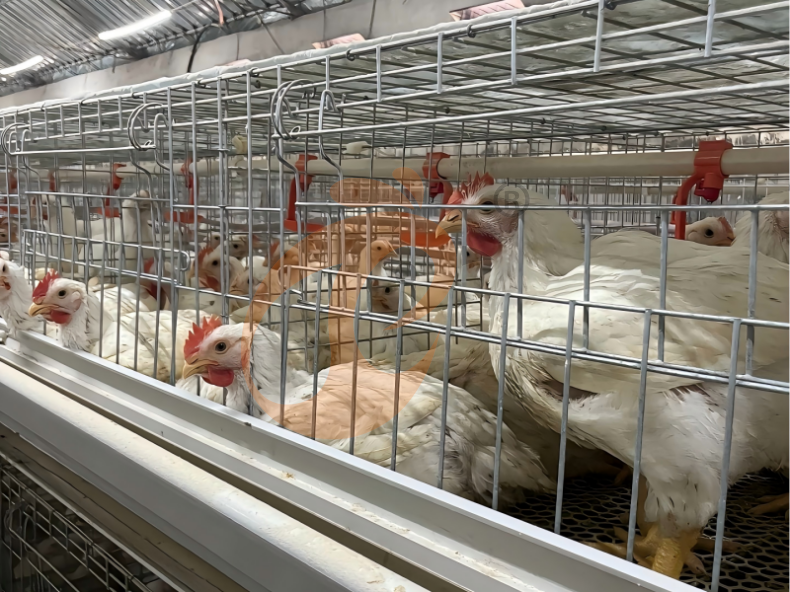

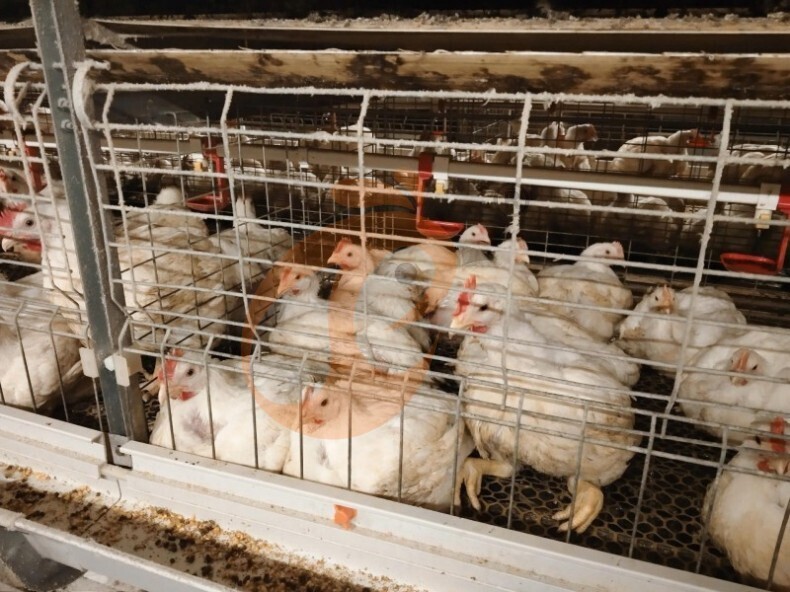

Manual Broiler Harvest, Semi Automatic A Frame Broiler Battery Cage System

To learn more types of battery cage system for broilers and farm equipment, please visit product list...

All pictures (or videos) of this pages are the application of our battery cage system for broilers in customers' poultry farm.

Our technicians have rich experience in localizing farms.

Welcome to contact our 24 hours Reception WhatsApp NO. : +8618830120193.

This guide explains how to operate and manage a semi-automatic battery cage system for broilers from day-old chicks to market.

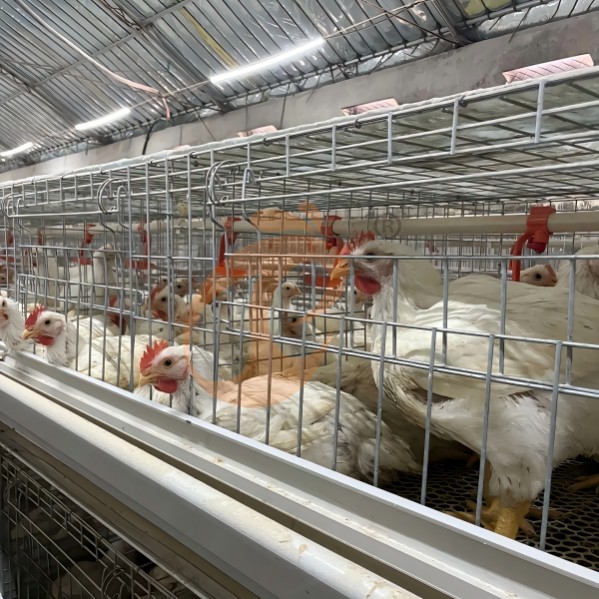

It is written for a farm manager or newcomer who wants practical, actionable steps — with clear parameters, product notes, and three helpful tables placed inside the text for quick reference.

"European Standard Semi Automatic A Frame Battery Cage System For Broiler"

1. Concise Specifications Of Battery Cage System For Broilers

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

3 Tiers

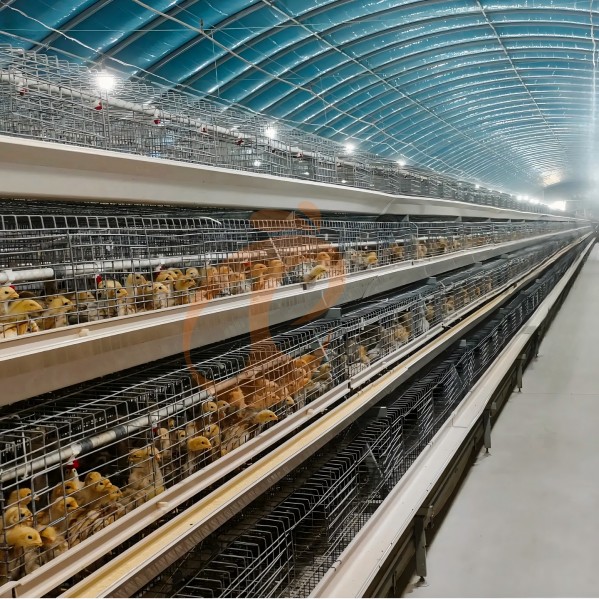

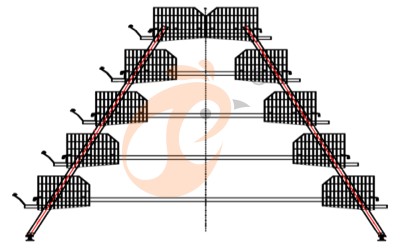

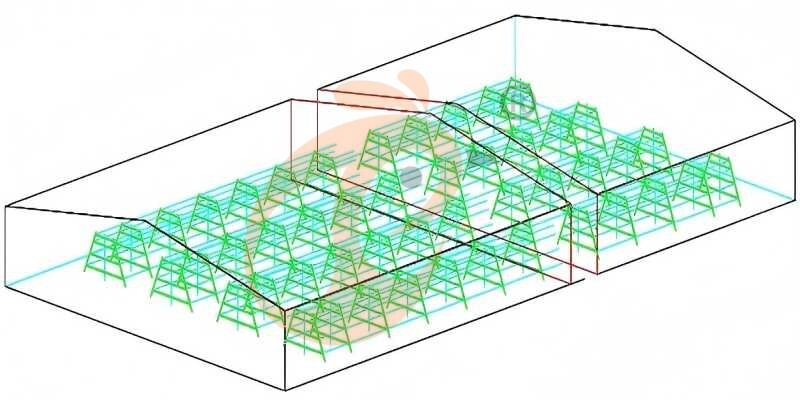

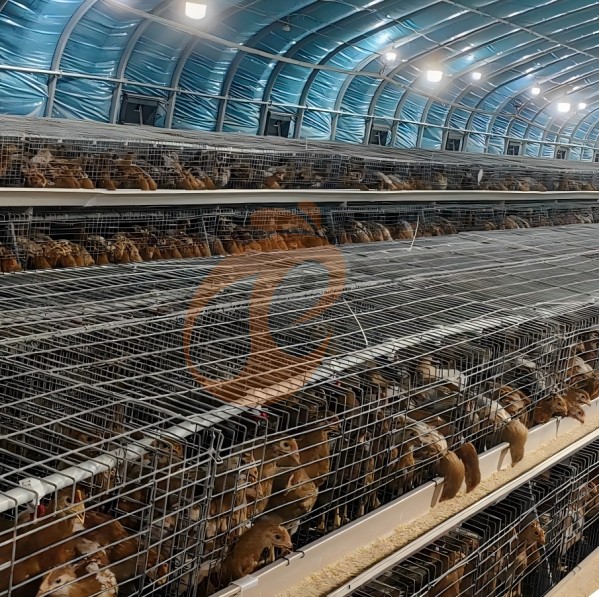

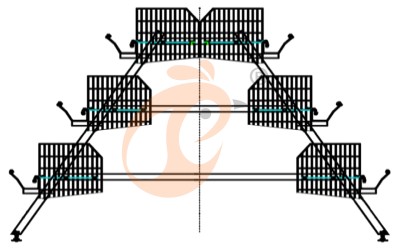

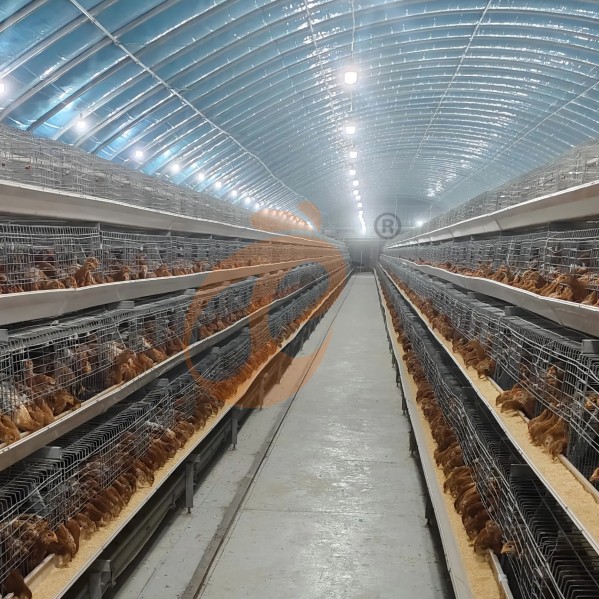

Layout Of Broiler Battery Cage System In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

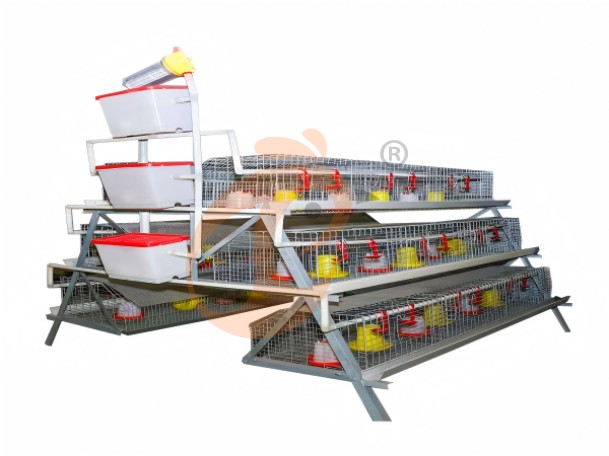

2. Cage & Basic Dimensions

"The Advantages Of Semi Automatic A Frame Broiler Battery Cage System"

3. Accessories, Structure, And Working Principles

(1) Fixed Cage System

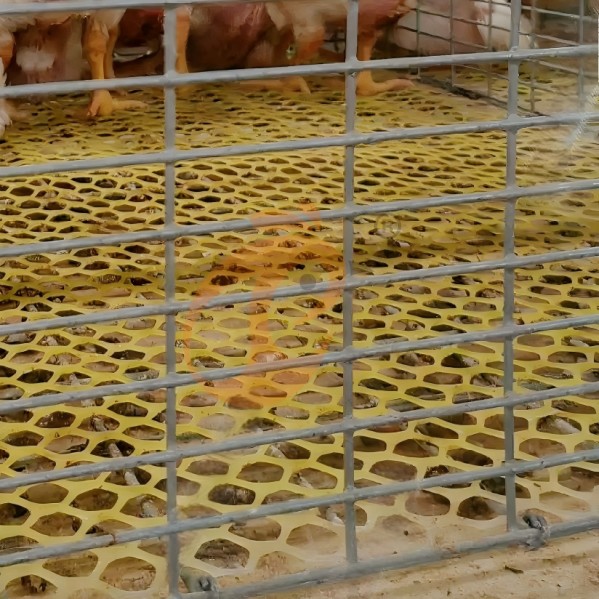

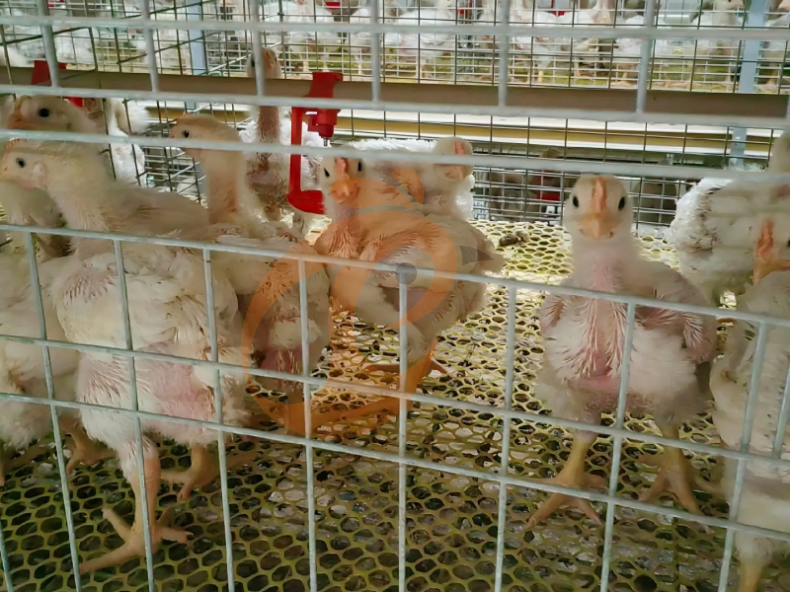

Plastic Mesh

• Accessories
  Cage door (sliding/latch), partition mesh, support clips, anti-escape lock, plastic floor mesh (for chicks)

• Structure

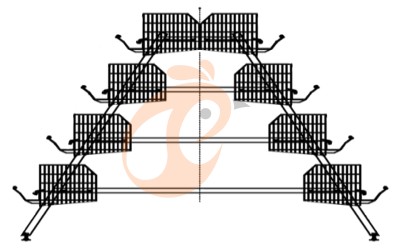

  A-type stepped design, 3–5 tiers, 2 rows per tier
  Unit cage dimensions: Length 150–200 cm, Depth 60–70 cm, Height 40–45 cm
  Each unit houses 10–15 broilers
  Plastic floor mesh: grid thickness 3–5 mm, mesh size 12–15 mm, wear-resistant, non-slip, high load capacity

• Working Principle
  Floor mesh inclined at 7–12° to allow feces to fall easily
  Chick stage: plastic floor mesh protects chick feet
  Adult stage: mesh removable; chickens stand directly on metal floor, improving durability and cleaning efficiency

(2) Fixed Frame and Support System

• Accessories
  Bolts, connecting plates, galvanized coating, anti-rust coating, support legs

• Structure
  Frame made of hot-dip galvanized rectangular tubes, thickness 2.5–3.5 mm
  Crossbeam spacing 1.0–1.2 m, support legs adjustable 5–10 cm

• Working Principle
  Each tier supports ≥180–220 kg, overall service life ≥25 years

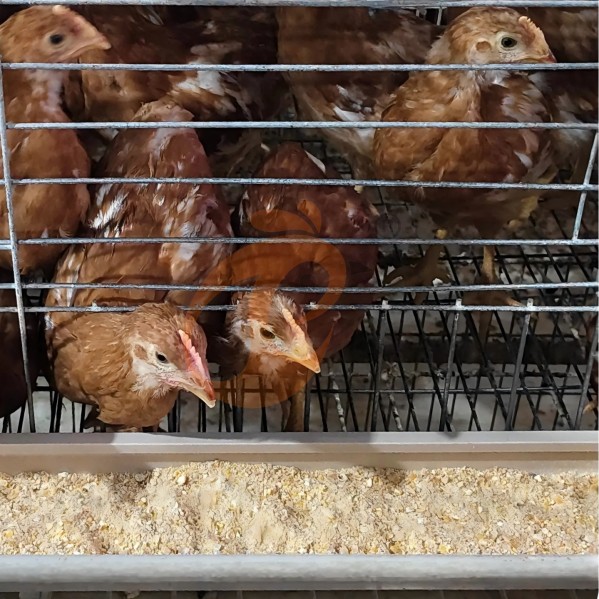

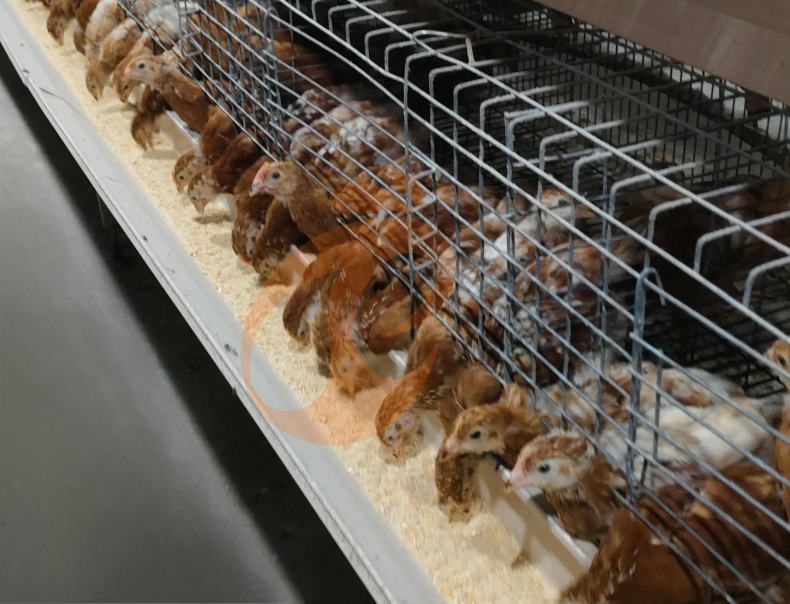

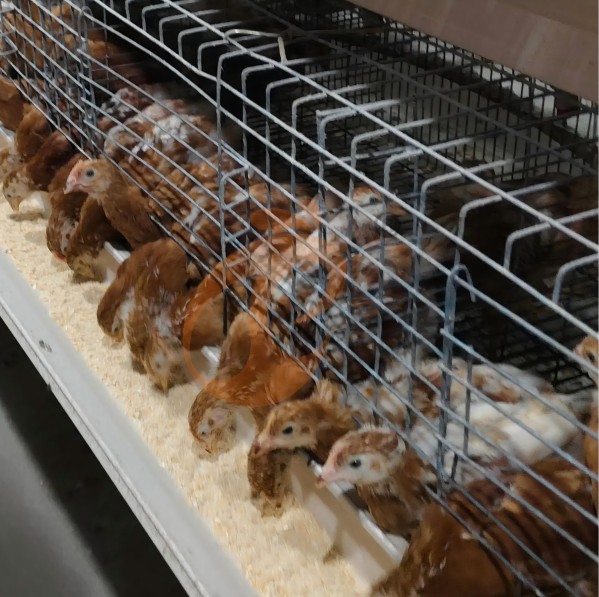

(3) Semi-Automatic Feeding System

• Accessories

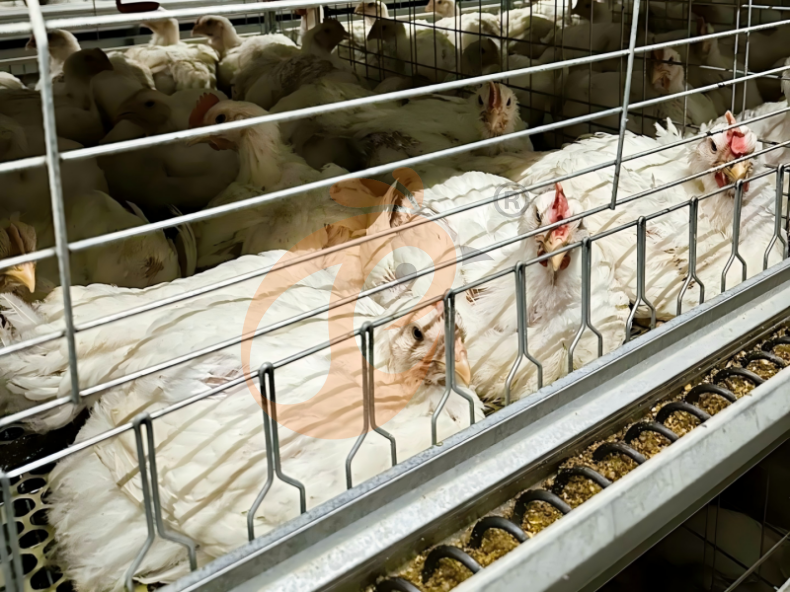

  Feed trough (galvanized sheet or PVC), trough hooks, anti-spill edges, feed push cart or conveyor, small feed tube (for chicks)

• Structure
  Standard feed trough length 1.5–2.0 m, depth 12–15 cm
  Small feed tube: low-level installation for chicks, removable as chickens grow
  Each trough serves 30–40 chickens simultaneously; small feed tube serves 10–15 chicks

• Working Principle
  Chick stage: small feed tube facilitates feeding, prevents feed waste and competition
  Adult stage: small feed tube removed, standard feed trough used for broilers
  Feed push cart or conveyor improves feed distribution efficiency by 40–60%

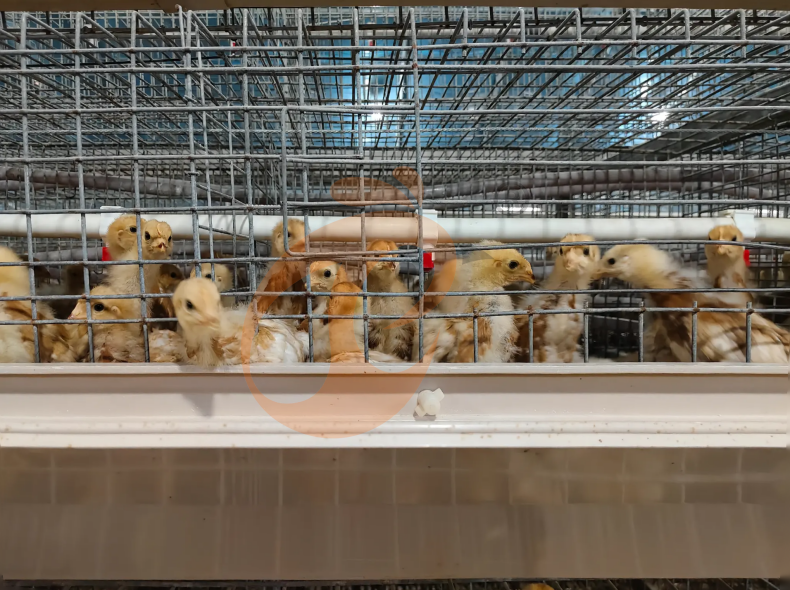

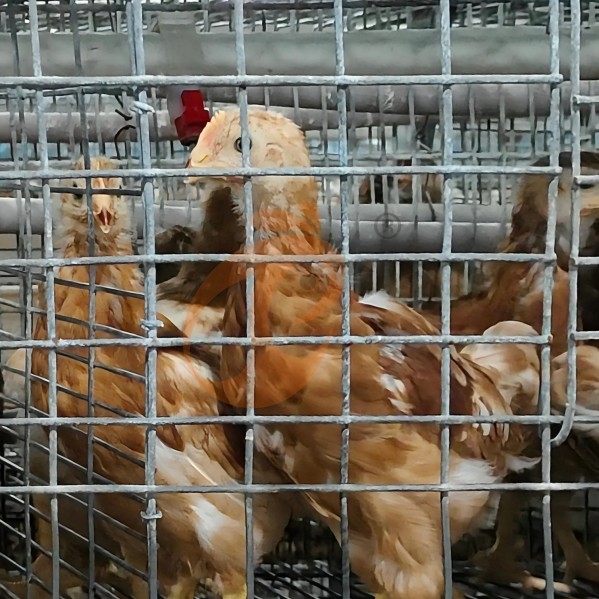

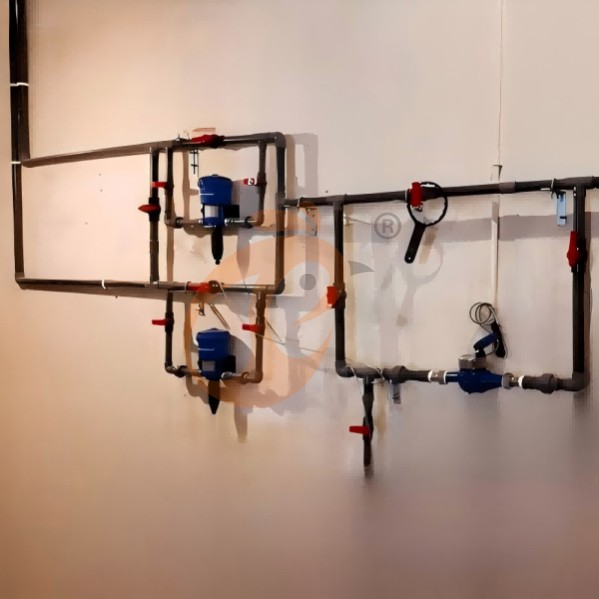

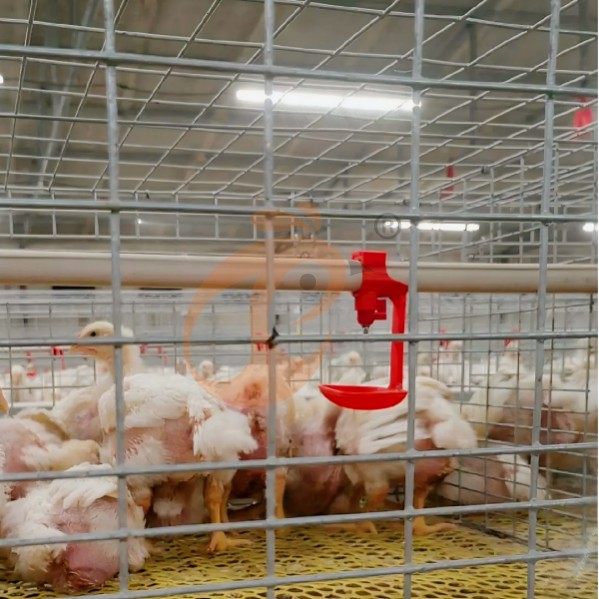

(4) Fully Automatic Drinking System

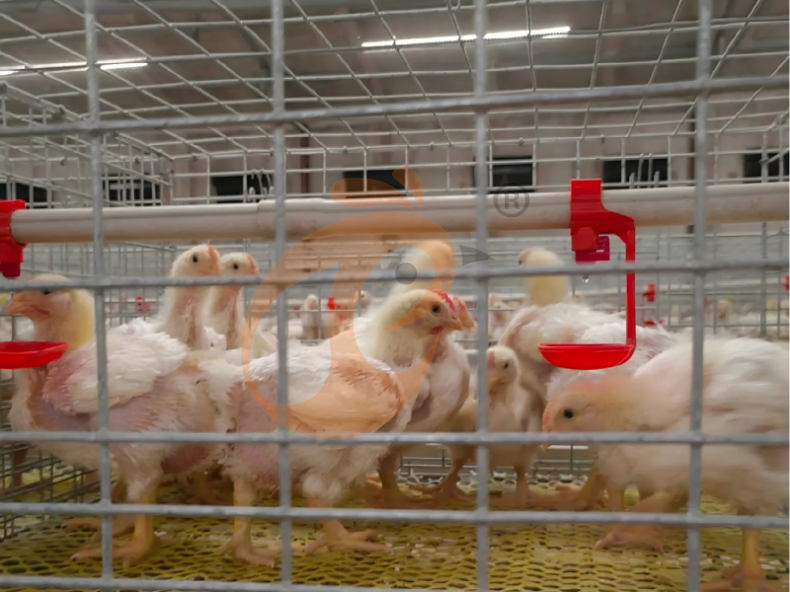

Water Line

• Accessories

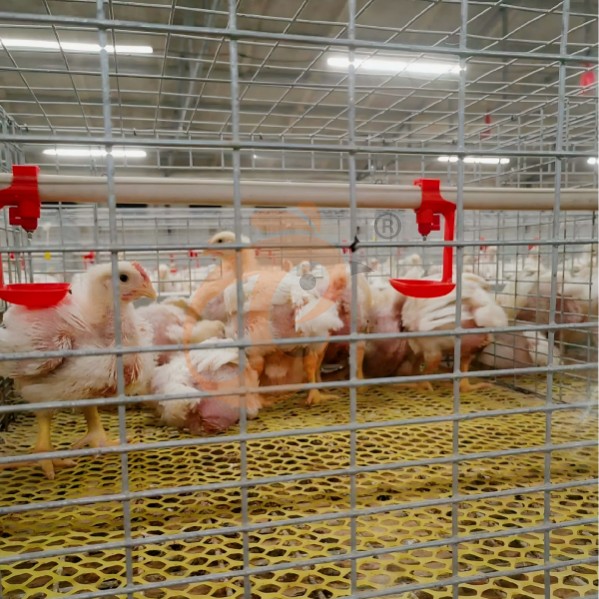

  Nipple drinkers, PVC pipes (Φ20–25 mm), T-joints, pressure regulator, water tank/pump, filter, low-level nipples for chicks

• Structure
  Each unit equipped with 2–3 standard nipple drinkers, plus 2 low-level nipples per tier for chicks
  Water tank capacity 50–100 L, water system is recyclable

• Working Principle
  Chick stage: low-level nipples installed at 10–12 cm, flow rate 30–50 ml/min
  Adult stage: height adjustable to 25–30 cm
  Automatic water supply, clean water, cross-contamination rate <5%

(5) Fully Automatic Manure Removal System

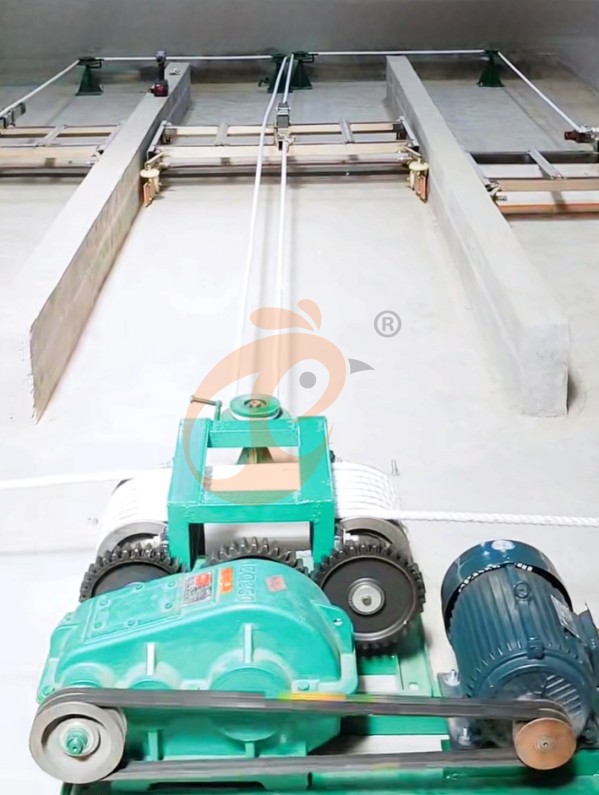

（5-1）Type 1 Scraper Manure System

Scrapers Under Cages

• Accessories
  Scraper, drive motor, guide rail, tension device, manure trough or bin

• Structure
  Each set has scraper rails installed at the cage bottom, width 1.8–2.4 m, scraper moves along rails to push manure into the collection bin

• Working Principle
  Automatic operation at scheduled times, scraper collects manure efficiently
  Suitable for large manure volume or where belts cannot be installed
  Ammonia concentration reduced by 30–35%, cleaning efficiency 2–4 times higher than manual removal

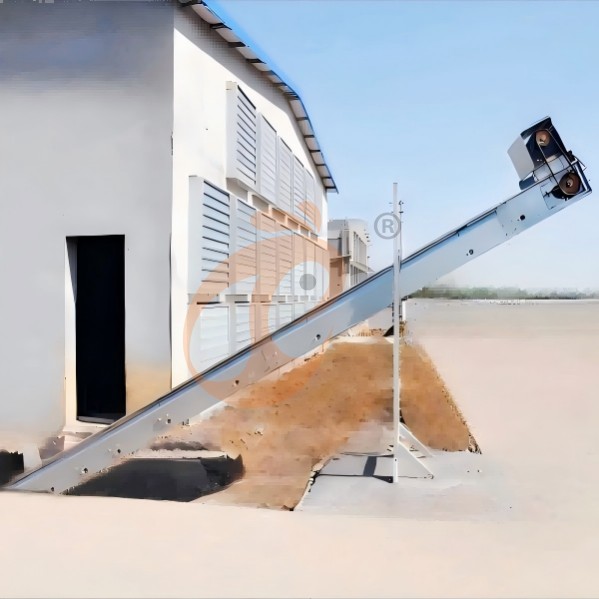

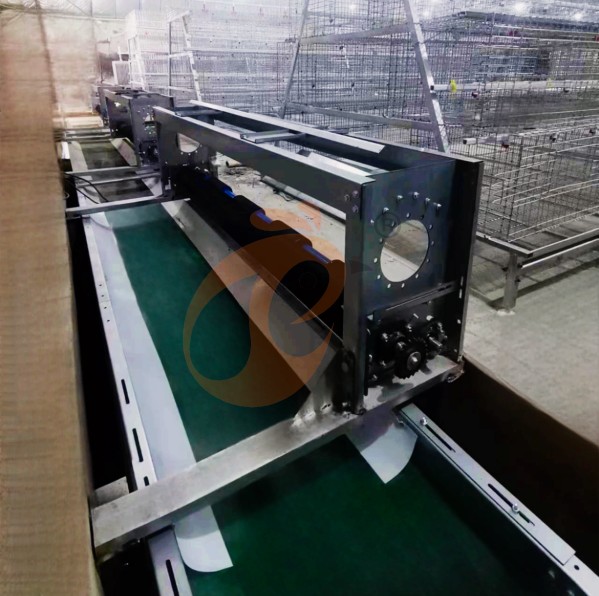

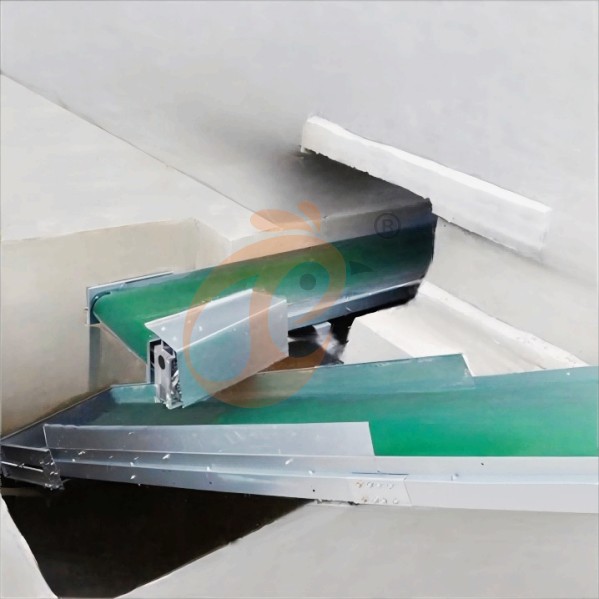

（5-2）Type 2 Manure Belt System

Truck Will Be Here

• Accessories
  Manure belt (PVC/rubber), drive motor, roller, scraper, tension device, manure collection cart

• Structure
  One manure belt per set, width 1.8–2.4 m, thickness 1.0–1.2 mm
  Drive motor operates periodically to transport manure to the house end

• Working Principle
  Manure falls onto the belt and is removed 1–2 times/day
  Efficiency 3–5 times higher than manual removal, ammonia concentration reduced 40–50%

"Essential Tips For Managing Poultry Farms And Battery Cage Systems For Broilers"

4. Day-By-Day And Week-By-Week Operations

Younger

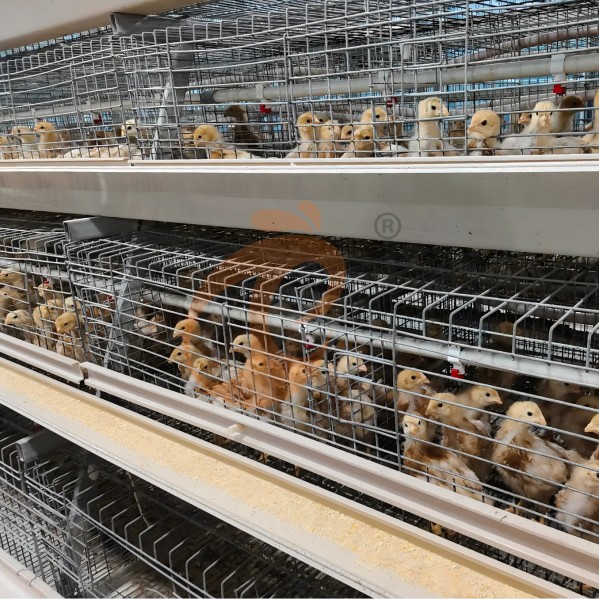

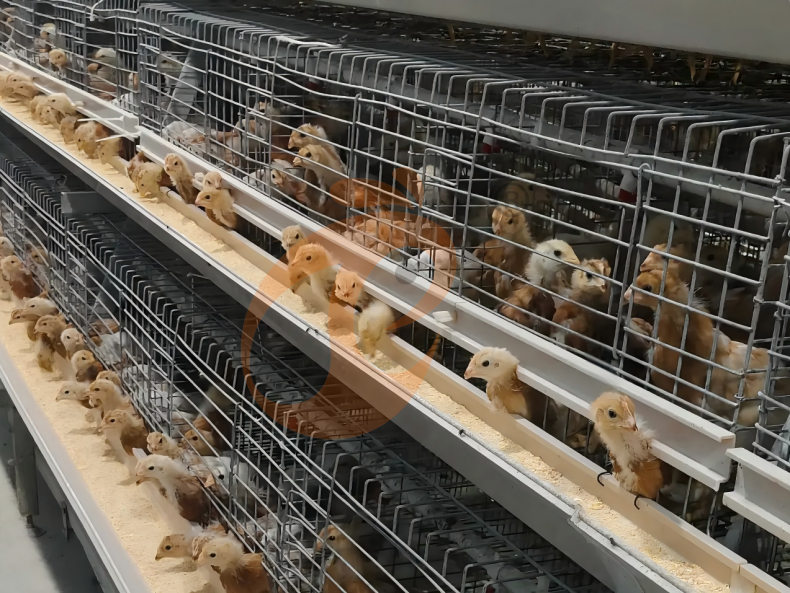

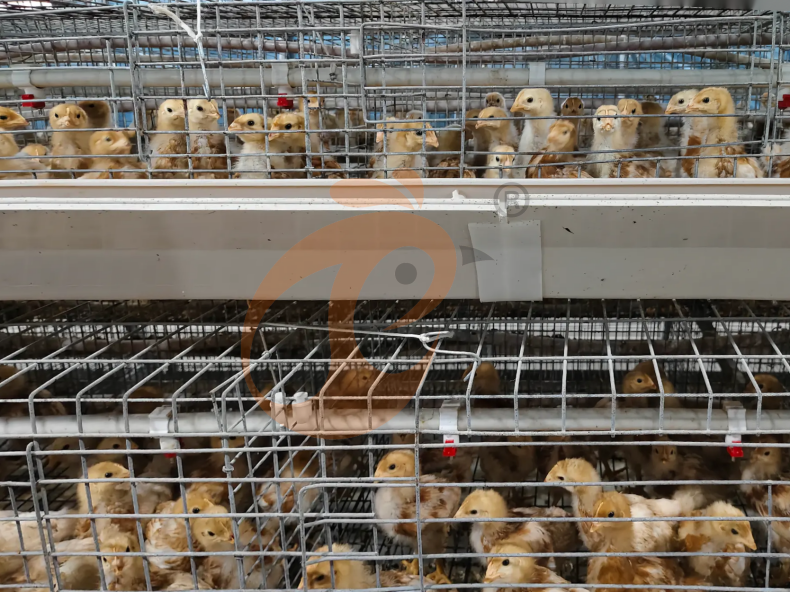

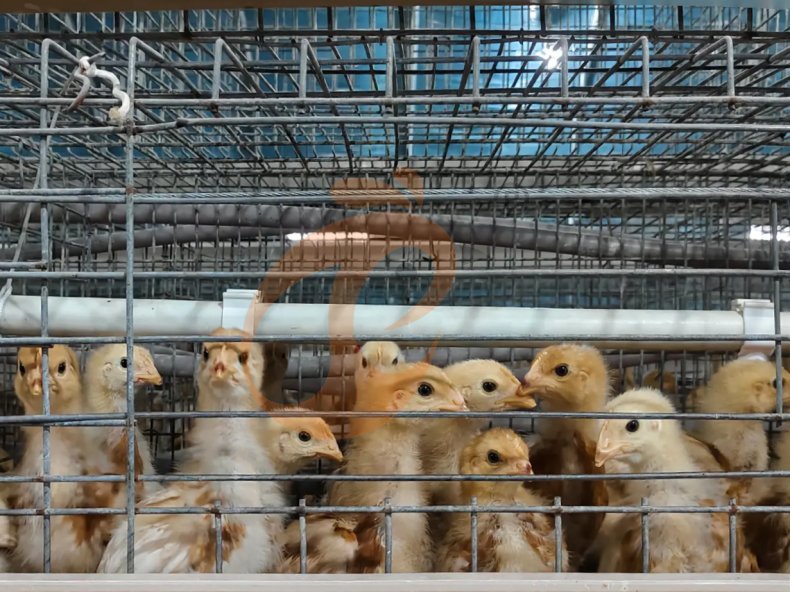

(1) Arrival (Day 1–2)

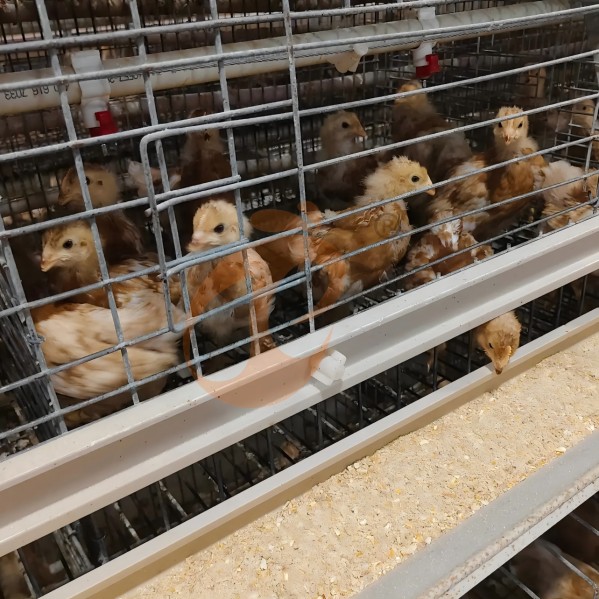

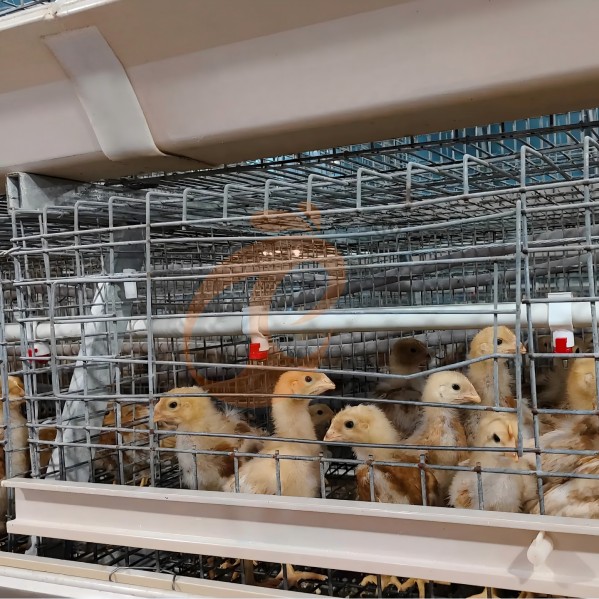

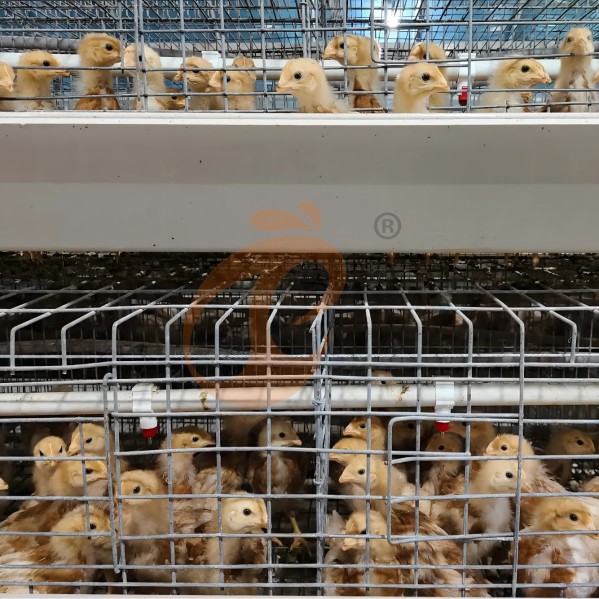

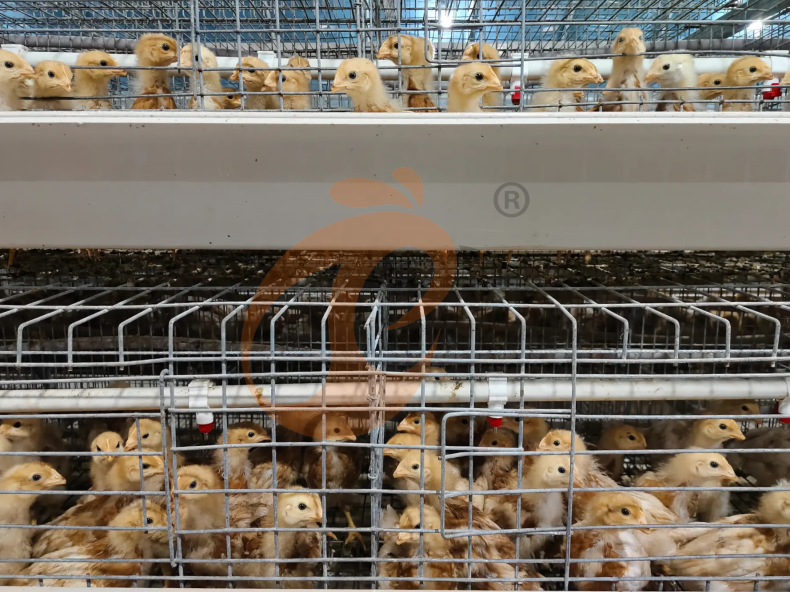

Preheat the house to brooding temperature. Place day-old chicks into the first tier only of the battery cage system for broilers.

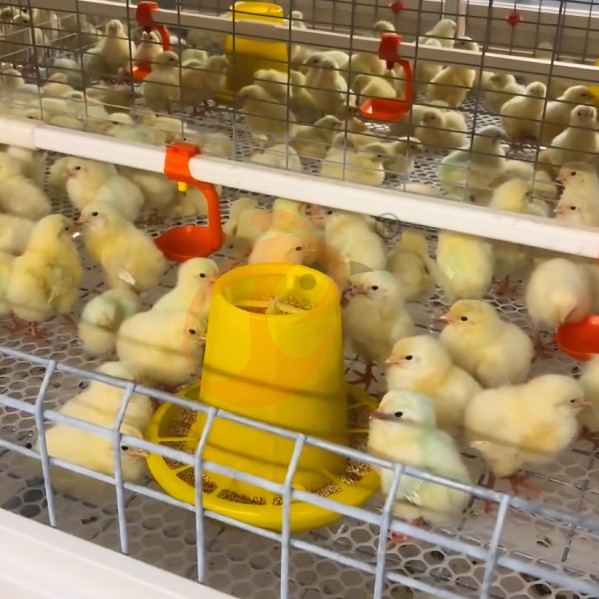

Provide small feed buckets and small water buckets at chick eye level so they can see feed and water immediately.

This helps crops fill and reduces early mortality. Broiler manuals recommend ensuring the majority of chicks have feed/water in the first 24–48 hours.

(2) Days 3–14 — Transition To Lines

Use height-adjustable water piping and slowly raise the water line (nipple/drinker) as chicks grow.

Keep the small buckets for ~2 weeks (your plan), and remove them once chicks readily use pipe/drinker and feeders.

Water systems should be set so chicks drink with feet flat and neck comfortable — good nipple placement increases early water uptake.

(3) Around Day 10 — Beak Trimming

You specified using a beak-cutting machine around day 10. Industry practice varies (some do hatchery infrared at day-old; many farms perform trimming within the first 0–10 days).

If trimming, use trained staff and approved equipment to reduce welfare risks. Monitor feed intake after the operation.

Fatter

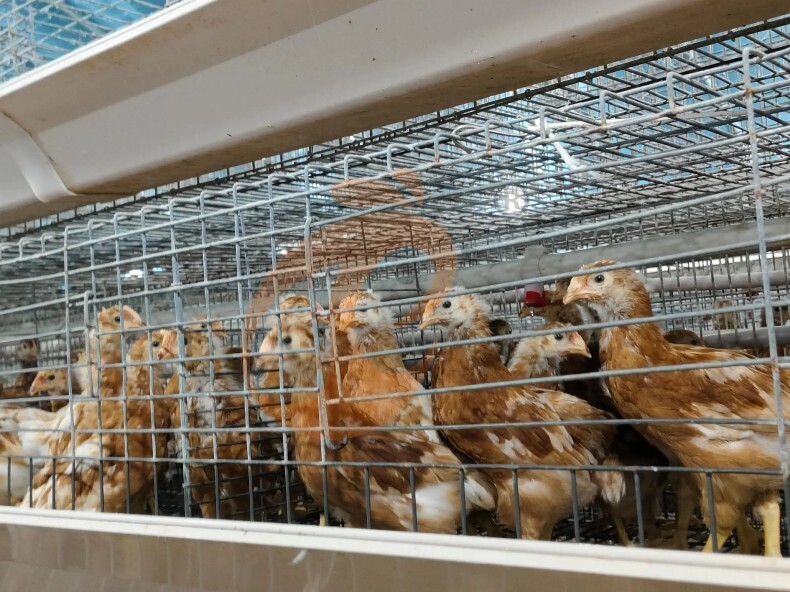

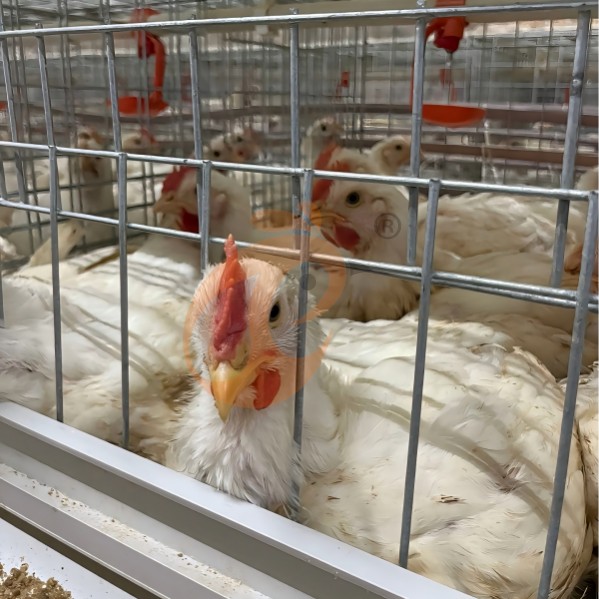

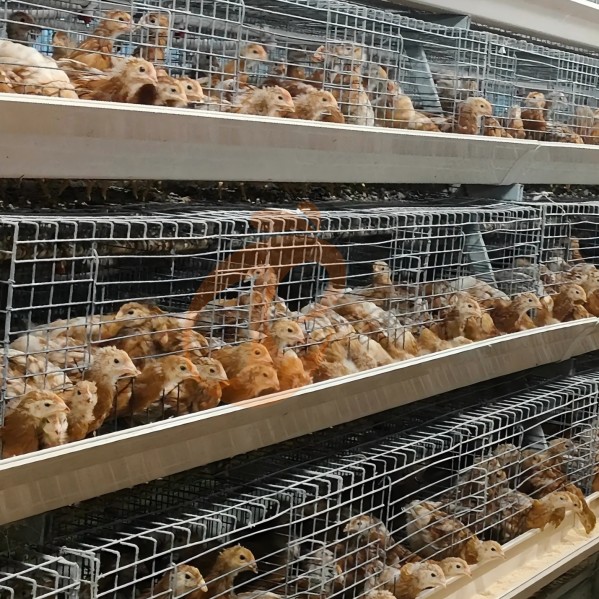

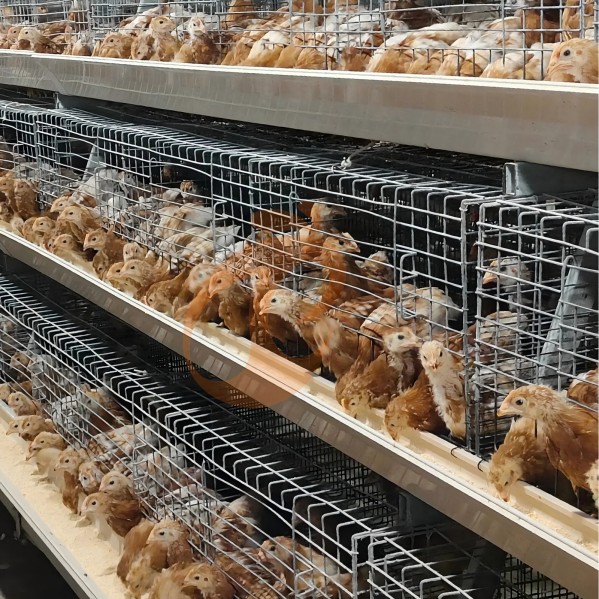

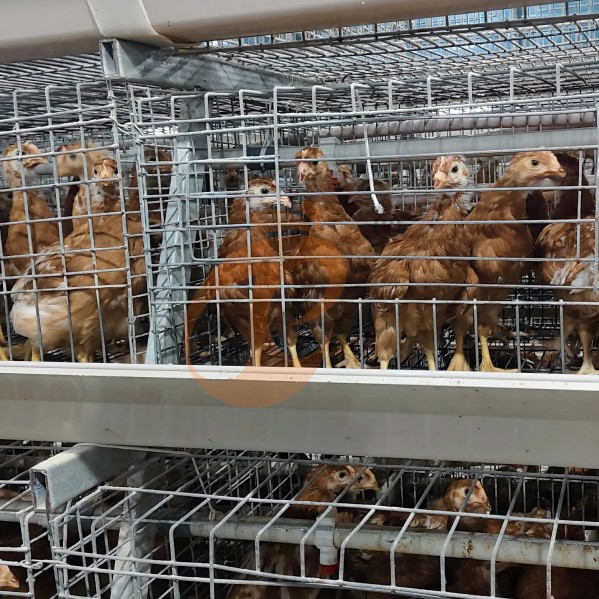

(4) Weeks 3–6 — Spreading Birds To Higher Tiers

Shift birds into the 2nd and 3rd tiers of the battery cage system for broilers gradually as body size permits.

You noted each brood nest is 24 birds initially — expand carefully and avoid overcrowding at feeders and drinkers.

Remove the temporary plastic flat net (the chick floor) around week 6 for cleaning, then store for reuse. This protects chicks early and simplifies cleaning between flocks.

Fatter

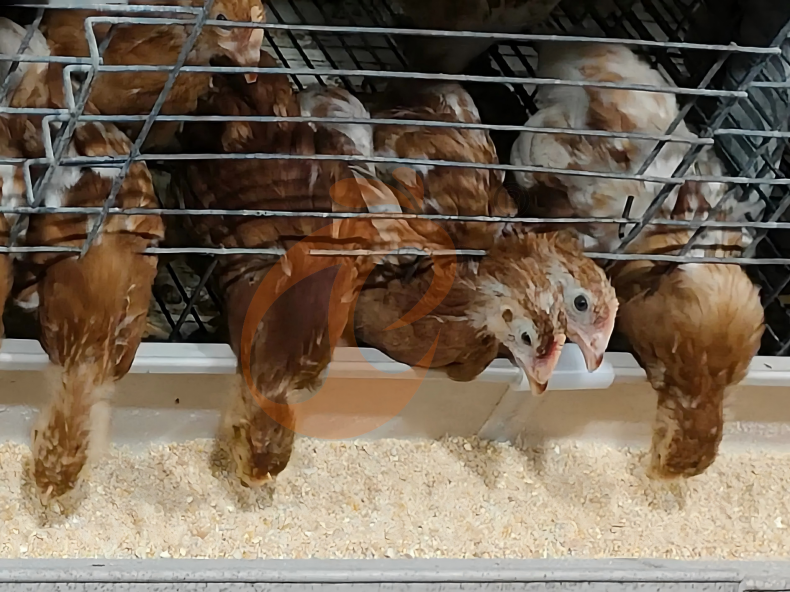

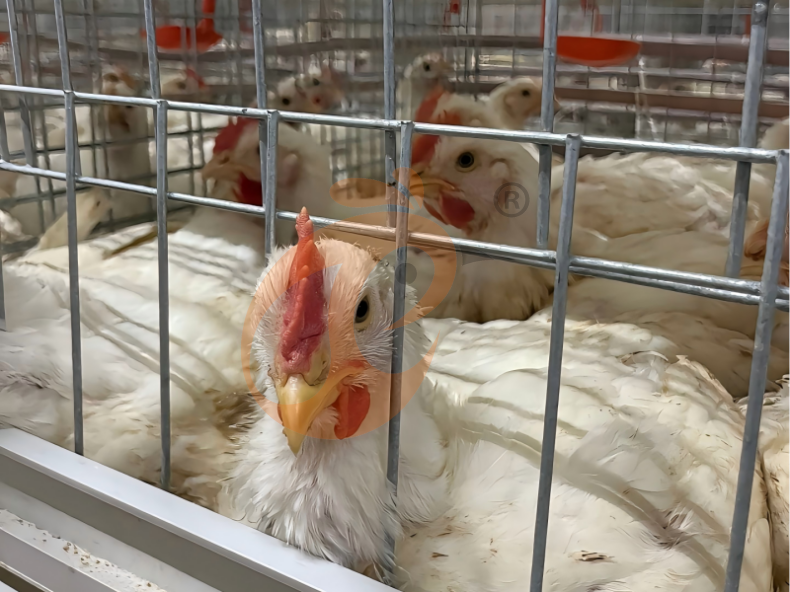

(5) Harvest (Day 45–60)

Larger inward doors make catching easier: close adjacent compartments, open the target door, guide birds calmly to the handler and into transport crates — use non-slip flooring and trained staff for safe, low-stress catching.

5. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.
