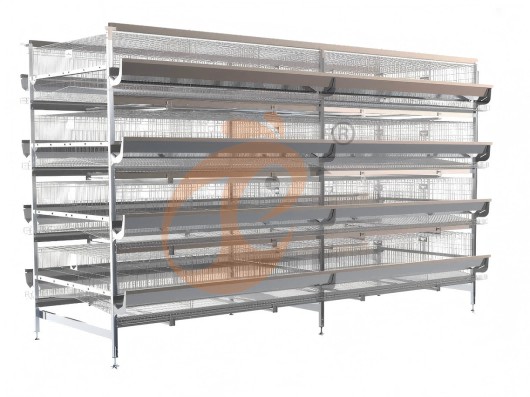

Semi Automatic H Frame Layer Battery Cage System

Name: Semi Automatic H Frame Layer Battery Cage System
SKU: 0

1. 1,00-20,000+ layers/house chooses it
2. Low ammonia <10 ppm
3. Rearing mortality ≤ 3%
4. Service life ~25 years
5. Reception /WhatsApp NO. : +8618830120193

 Get price

Send email

Leave message

Download

Product details

To learn more types of battery cage system for layers and farm equipment, please visit product list...

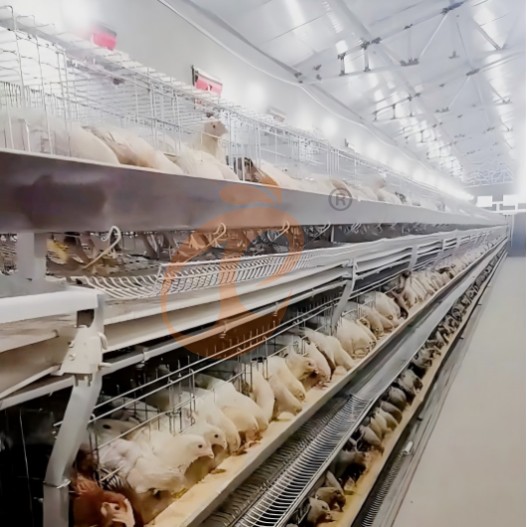

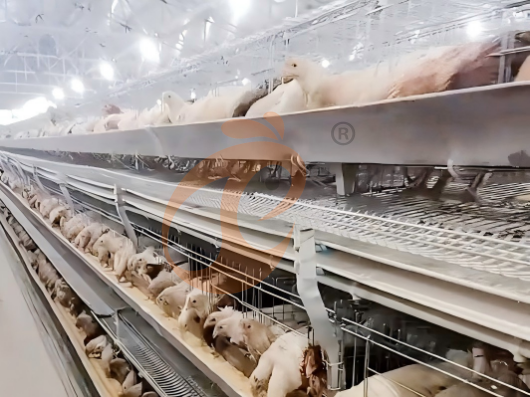

All pictures (or videos) of this pages are the application of our battery cage system for layers in customers' poultry farm.

Our technicians have rich experience in localizing farms. Welcome to contact our 24 hours Reception WhatsApp NO. : +8618830120193.

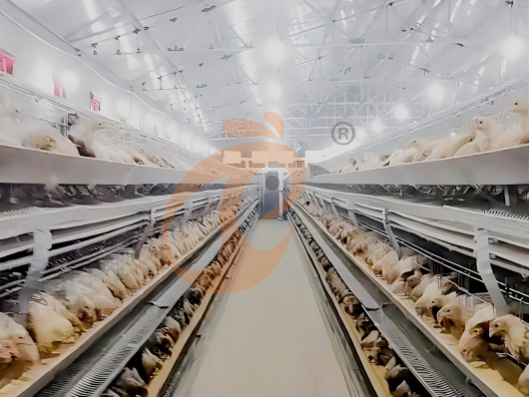

Two Rows, 3 Tiers

12-16 Week Old

The semi automatic H-type battery cage system for layers is widely adopted across small-to-medium and larger layer farms for its compact layout, clear zoning, and moderate operating cost.
Compared with fully automatic systems, it lowers up-front investment and maintenance complexity; compared with simple A-type cages, it improves space utilization, management convenience and egg handling.

"Semi Automatic H Type Battery Cage System For Layers"

1. Concise Specifications Of Battery Cage System For Layers

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

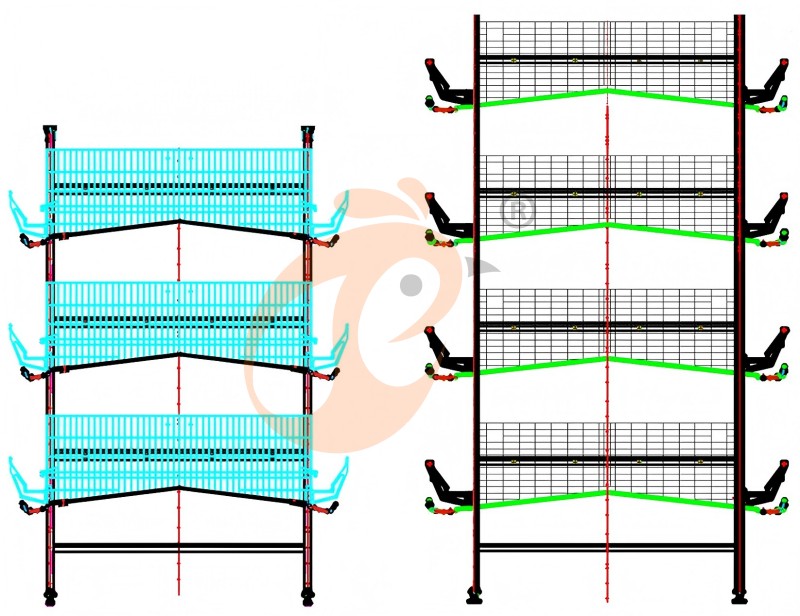

4 Tiers

3 Tiers, 4 Tiers

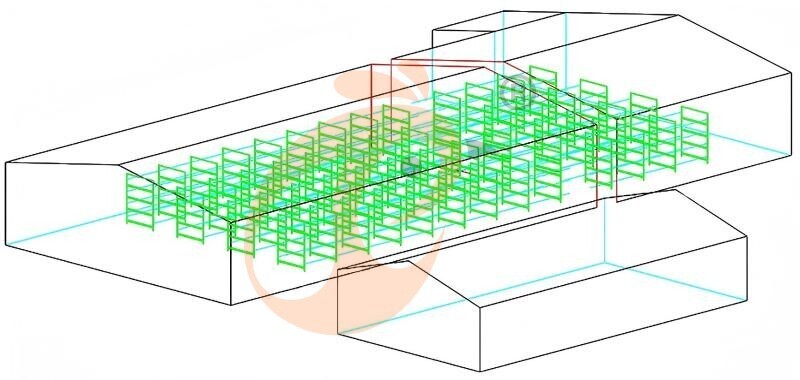

Layout Of Battery Cage System For Layer In Chicken House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

Type	Tier/Set	Size(L x W x H)/Unit(M)	Cell Size(L x W x H) (CM)	Cells/Unit Per Set	Birds/Cells	Birds/Set	Space/Bird(CM2)
H3	3	2.2 x 1 x 1.65	43 x 38 x 38	30	4	120	418
H4	4	2.2 x 1 x 1.95	43 x 38 x 38	40	4	160	418

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

Component	Regular Data
Cage Model	3 tiers	4 tiers
House Size: 50 x 9 x 4.15-4.65 (L x W x H)	7,560 birds	10,080 birds
House Size: 100 x 9 x 4.15-4.95 (L x W x H)	15,480 birds	20,640 birds
Standard Cage Dimension (L x W x H)	2.2 x 1 x 1.65m	2.2 x 1 x 1.95m
Birds Per Set	120 birds	160 birds

"Essential Tips For Managing Your Poultry Farm And Battery Cage System For Layers"

2. Structure & Typical Parameters— H Frame Battery Cage System For Layers Configuration

Below are representative H-type battery cage system for layers parameters (based on common commercial practice and previously supplied group dimensions).

These are intended as procurement or design reference points.

Cage Frame

Cage Door Mesh

Typical Semi Automatic H Frame Battery Cage System For Layer Parameters

Item	Typical Value / Note
Tiers / Layers	Commonly 4 tier
Bottom Mesh (Chick Zone)	Denser wire / smaller mesh to prevent slipping
Feed Trough Material	PVC — easy to clean, corrosion resistant
Egg Collection	Manual collection
Manure Cleaning	4 layers with 4 layers of manure belt: usually plastic sheet, laid under per layer of cage bottom net.
Main Structure Material	Hot-dip galvanized steel; service life ~25 years (normal use)

"Key Advantages Of Semi Automatic H Type Battery Cage System For Layers"

3. Structure Of Semi-Automation

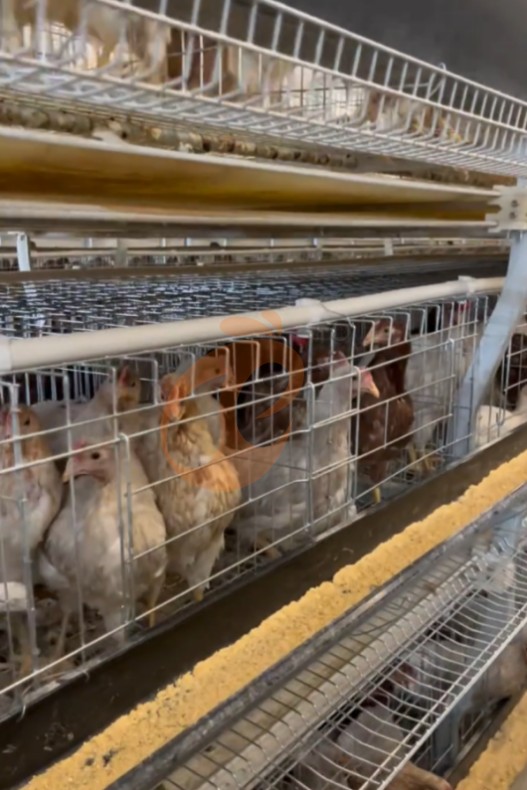

(1) Cage Frame

Cage Frame Structure

The structure is made of Q235 high-strength steel wire, hot-dip galvanized (≥ 275 g/㎡), ensuring 25 years of corrosion resistance.
Each cage set holds 120–160 birds.
Compared with A-type cages, it saves 30–40% floor space, while accommodating the same or more chickens.

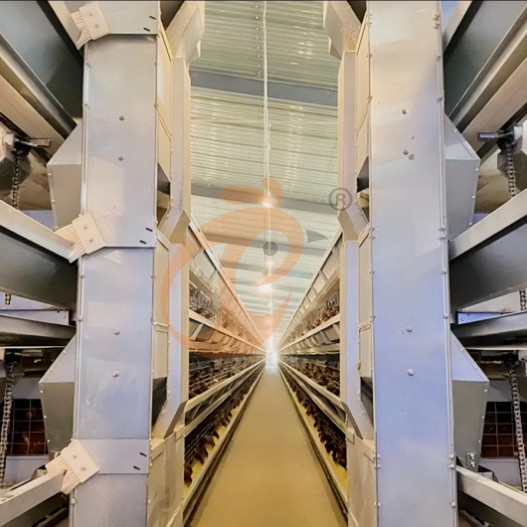

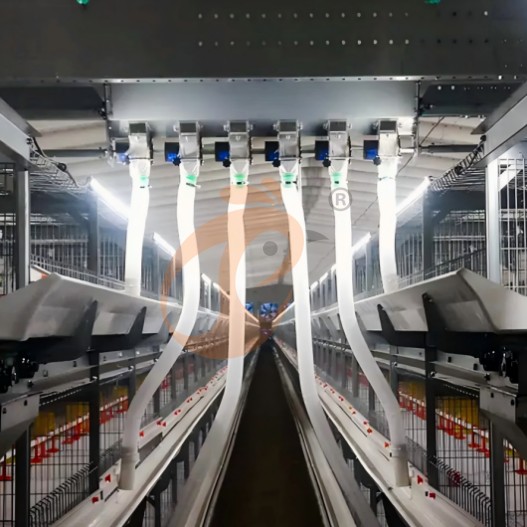

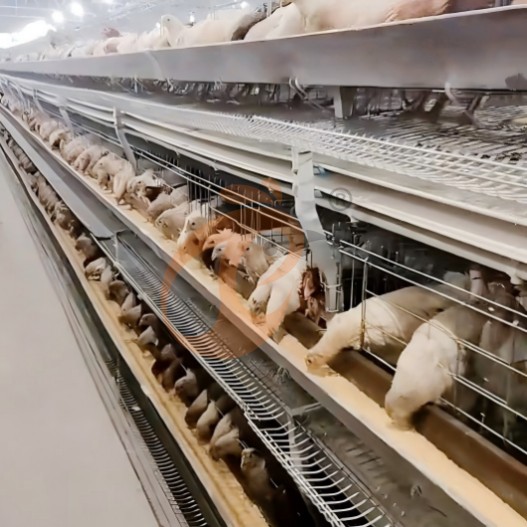

(2) Automatic Feeding System

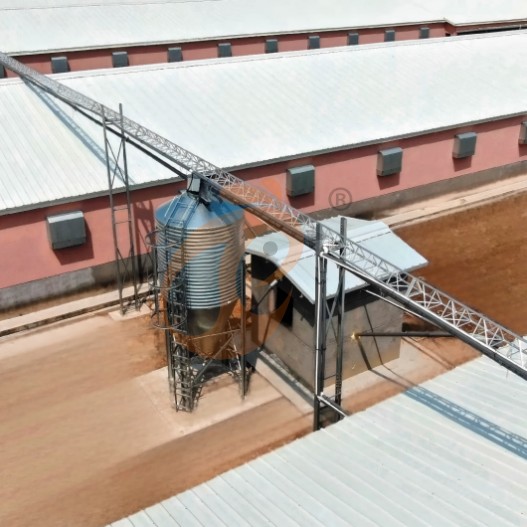

Feed Storage Tower

Type 1 Vertical Feeding Hopper System

Type 2 Horizonal Feeding Hopper System

Type 3 Chain Feeding System

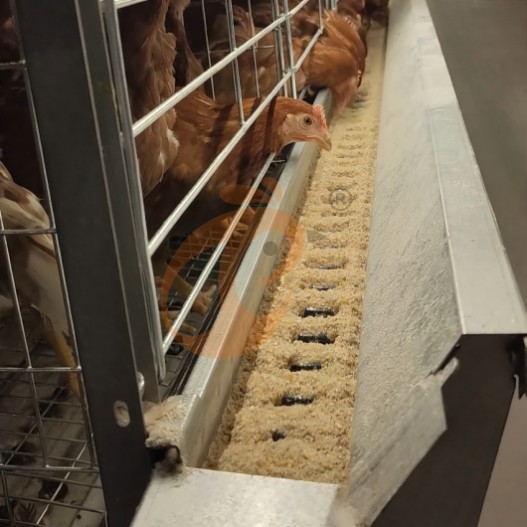

Equipped with chain or screw troughs for automatic feed delivery, while allowing manual supplementation when needed.
Labor intensity is reduced by 50%.
One worker can manage up to 5,000 birds efficiently.

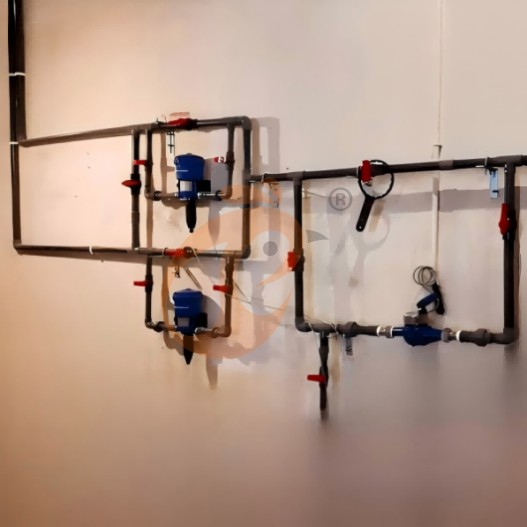

(3) Automatic Drinking System

Automatic Water Line

Pipe And Drinker

Automatic nipple drinkers with pressure regulators ensure clean water supply.
Water consumption is reduced by 40–55% compared with open troughs, and flock mortality is lowered by 2–3%.

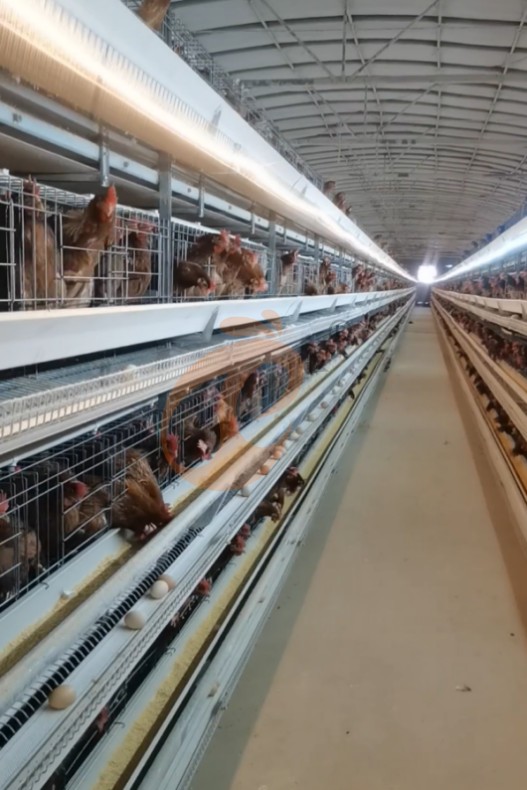

(4) Manual Egg Collection System

Egg Bottom Mesh And Belt

Semi-automatic rolling design allows eggs to roll gently into the collection trough.
They are then collected manually or through a semi-automatic belt.
Egg breakage rate remains below 0.5%, nearly half that of floor rearing systems.

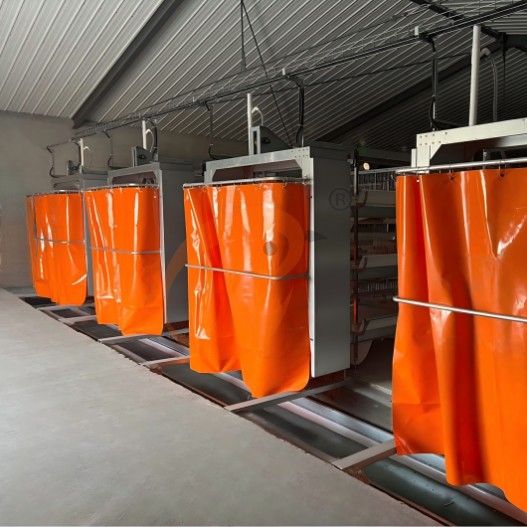

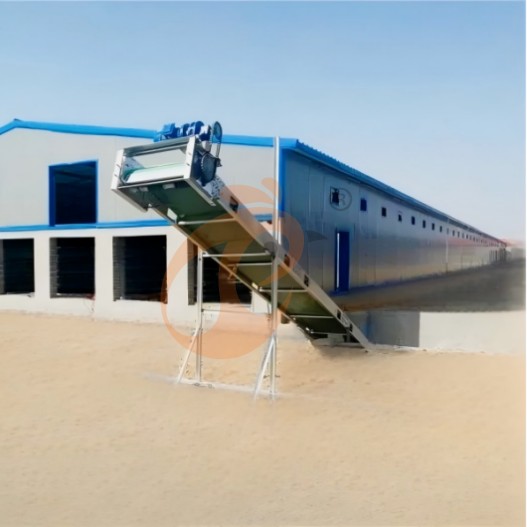

(5) Automatic Manure Removal System

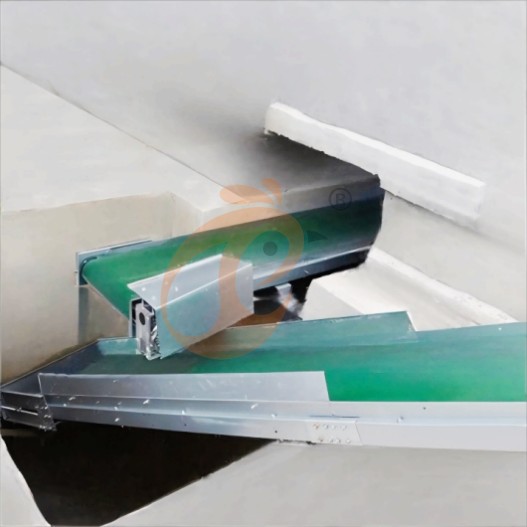

Manure End Device

To Outside Of Chicken House

Truck Accepts Manure

Belts are installed under every tier of cages, operated by motor.
Daily manure removal takes only 10–15 minutes, improving efficiency by 2–3 times compared to manual cleaning, while keeping the environment hygienic.

4. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

Farm Management

Farm CCTV

AI Data Analysis Report

Control Device

Lighting

NH3 Sensor

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

Wet Pad Outside House

Fans In House

Fresh Air System

(4) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(5) Humidity device gives a humidity 40%-70% to chicken according to its different age.

(6) Please contact us to give your exact solution according to your breeding quantity and farm condition.

Visit our products to learn more...

5. Recommendation Types Of Battery Cage System For Layer

Visit battery cage system for layer to learn more ...

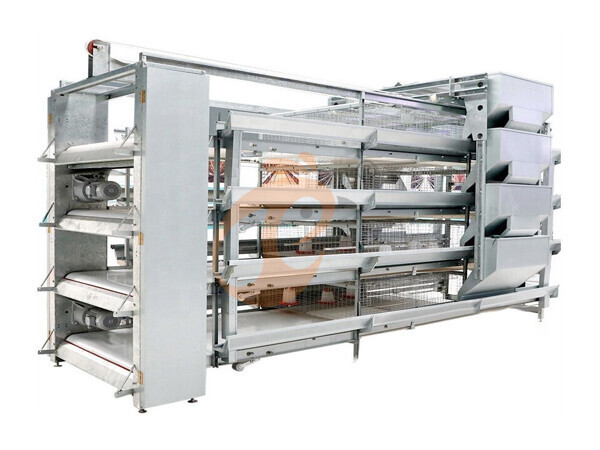

Automatic

H Type

Automatic

A Type

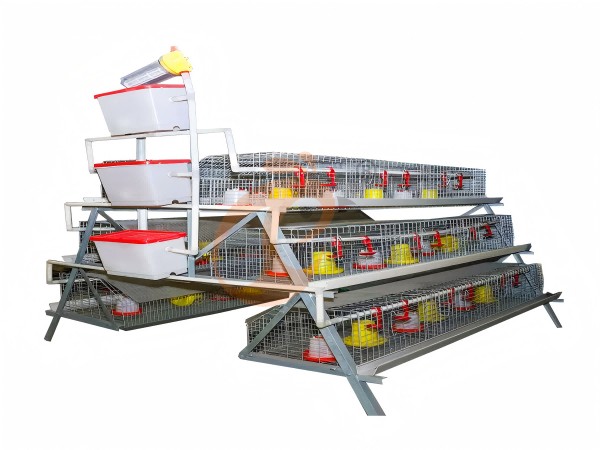

Semi Automatic

A Type
