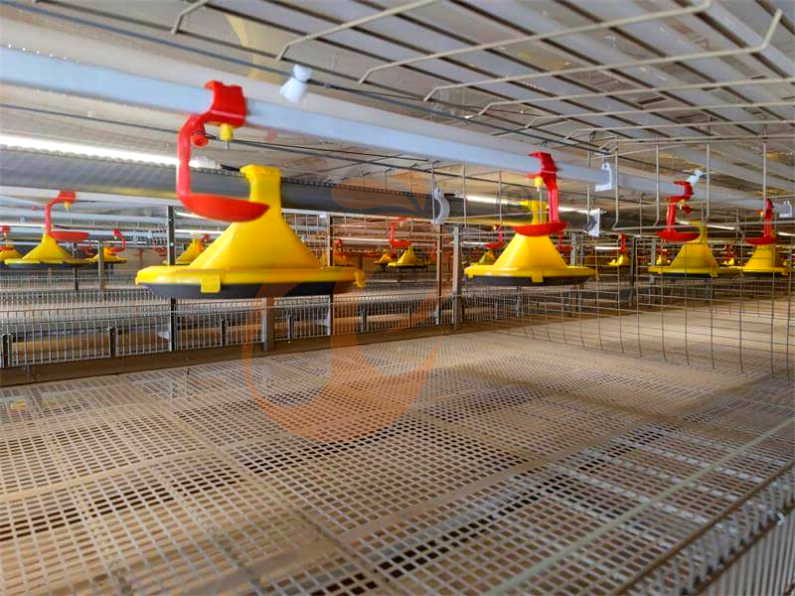

Automatic Broiler Chain Harvest, Automatic H Frame Broiler Battery Cage System

Quick Viewing Of H Type Automatic Broiler Battery Cage System

Current Status Of Commercial Broiler Farming Equipment Worldwide

In today's global commercial poultry industry, broiler farming has become increasingly automated and large-scale.

For commercial broiler farms with more than 10,000 birds, based on over 20 years of multi-country experience, our company has identified three mainstream H-type broiler cage designs that are widely accepted and preferred by local markets worldwide.

Three Main Types

1. Pull-out slat harvesting system

2. Chain-type automatic harvesting system

3. Without automatic harvesting system

There are equipped with automatic systems of feeding, drinking, manure cleaning, cage system and smart poultry system (optional accessories).

Some customers choose environmental control system such as automatic house lighting, heating device and ventilation systems. These are used in temperate and frigid climates, while in tropical climates they are applied as appropriate.

Application Guide Of 3 Types Of H Type Commercial Broiler Cage

To help you better understand these poultry equipment, we will present some short videos and real farm data.

Video 1: Taiyu (HK)’s Turnkey Case Of Pull-Out Slat Harvesting System

The video part of pull-out slat harvesting system are from 00:30s to 01:10s.

1. Key Advantages

• Pull out the detachable slat tray, chickens fall onto the manure belt, to end lift device for collection

• Eliminates manual catching from each cage

• Reduces labor demand by 50–60%

• Achieves harvesting efficiency of 5,000–8,000 birds/hour

• Lowers injury rate to ≤2–3%

• Improves overall harvesting speed by 2–3 times

• Ideal for commercial poultry farms seeking higher efficiency

2. Price Range

The middle one in 3 types

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Video 2: Taiyu (HK)’s Turnkey Case Of Chain-Type Automatic Harvesting System

The video part of chain type harvesting system are from 00:35s to 01:59s.

1. Key Advantages

• During harvesting, the side mesh rises, Chickens are transported to end lift device for collection

• Reduces labor demand by 50–70%

• Improves harvesting efficiency by 2–3 times

• Achieves a collection speed of 6,000–10,000 birds/hour

• Minimizes injury rate to ≤1–2%

• Suitable for large-scale commercial poultry farms (30,000+ birds)

2. Price Range

The highest one in 3 types

Video 3: Taiyu (HK)’s Turnkey Case Of Broiler Cages Without Automatic Harvesting System

1. Smart poultry system are from 00:03s to 00:06s.

2. Intelligent automatic timed and quantified feeding system are from 00:17s to 00:35s.

3. Ventilation systems are from 00:52s to 01:03.


1. Key Advantages

• Integrated automatic feeding, drinking, and manure cleaning systems, manual chicken collection

• Q235 steel with hot-dip galvanization or aluminum-zinc coating

• Service life of 15–20 years

• Fully automatic system reduces labor

2. Price Range

The lowest one in 3 types

Broiler Capacity In A House

These three types of equipment have basically the same broiler stocking capacity under the same chicken house dimensions.

1. 80 x 11 x 4.1-12 (L x W x H): 23,000 - 31,000 birds

2. 100 x 11 x 4.1-12 (L x W x H): 29,000- 40,000 birds

If you need professional advice, project experience sharing, or a customized quotation, 24/7 WhatsApp support: +86 188 3012 0193, contact us now.

Why Choosing Taiyu (HK) Group

Here is a 15 mins video showing Taiyu (HK) headquarters, poultry farm equipment, production department, QC, logistics department, customer cases...

The Advantage Of Taiyu (HK) Broiler Cage

1. Quality and design of Taiyu (HK) broiler cage: European standards

2. Lifespan of Taiyu (HK)'s pullet cage: 25+ years

3. Delivery from local factory: Hong Kong headquarters, branches of China, Nigeria, Tanzania, Ethiopia and Kenya ( depends on you location, we delivery from the nearest factory and warehouse)

Our design and quality of battery cage system and poultry farm equipment based on European and USA standard.

Designed for the efficient management of broiler chicken cage farming, fully automatic harvest H frame battery cage systesm for broiler integrates automation across every stage of poultry care—from feeding and watering to waste management and harvesting.

All pictures (or videos) of this pages are the application of our fully automatic harvest H frame battery cage systesm for broiler in customers' poultry farm.

Our technicians have rich experience in localizing farms. Welcome to contact our 24 hours Reception WhatsApp NO. : +8618830120193.

"European Standard Automatic Harvest H Frame Battery Cage System For Broiler"

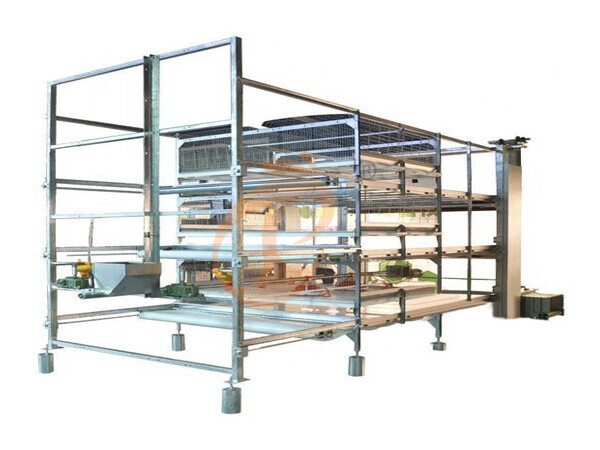

1. Concise Specifications Of Automatic Harvest H Frame Battery Cage System For Broiler

For your reference only, the following data is estimated, The exact data is based on the actual needs of the project and customer requirements, or our exact quotation.

3 Tiers

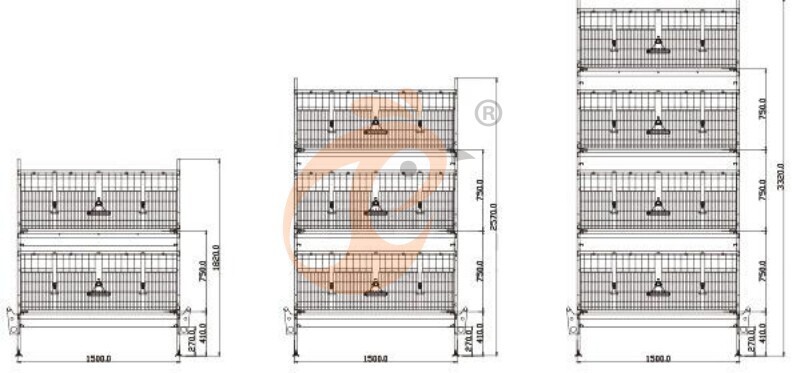

2 Tiers, 3 Tiers, 4 Tiers

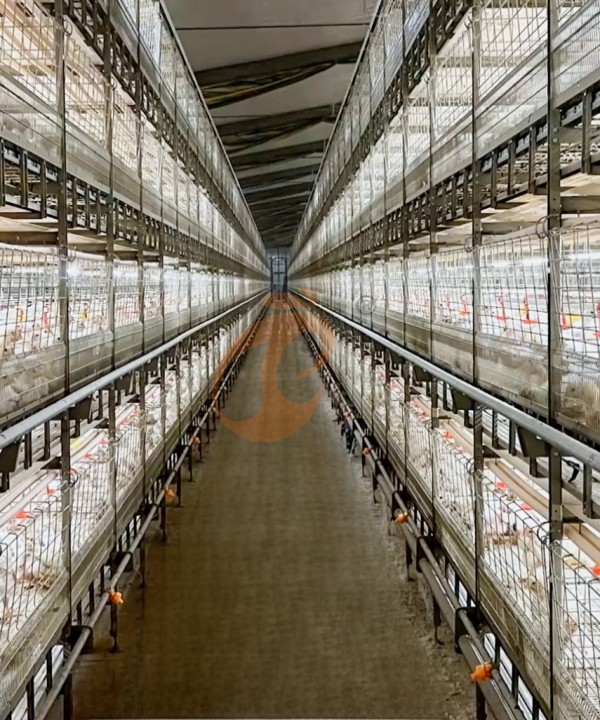

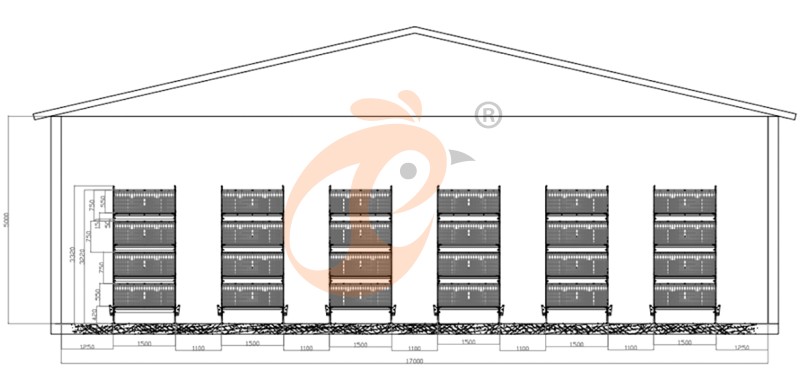

Layout Of Battery Cage In Poultry House

(1) Technical Specifications

Data is for reference only. Swipe horizontally to view full table.

(2) Recommended House Size and Bird Capacity

Data is for reference only. Swipe horizontally to view full table.

"Tips Of Managing Poultry Farm And Poultry Farm Equipment"

2. Automatic Harvesting System

One of the standout features of the automatic harvest H frame battery cage systesm for broiler is the automatic harvesting system.

Which streamlines the process of collecting broilers after their 45-day growth cycle. The automatic harvesting system includes:

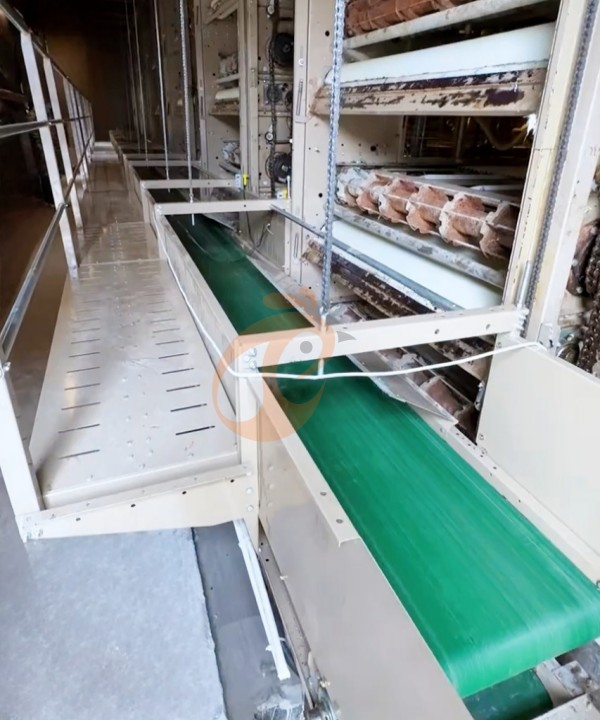

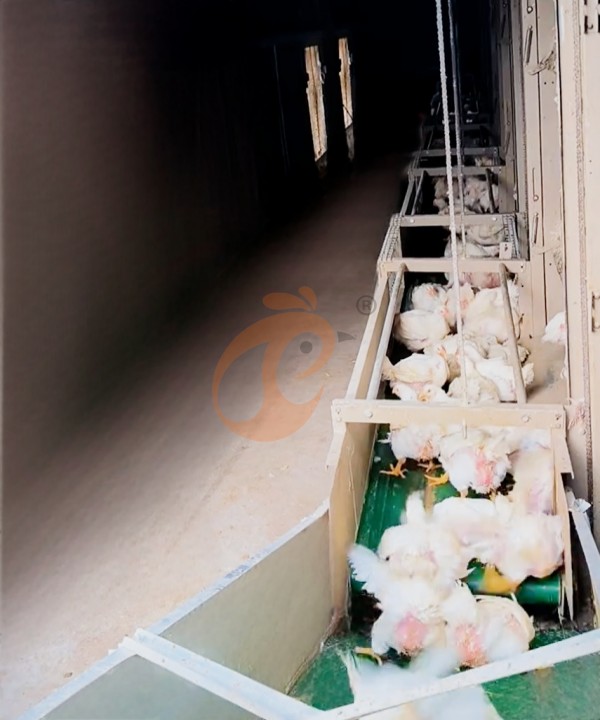

(1) Conveyor Belt System

• Chickens are automatically transported via conveyor belts to the harvesting area.

• The speed of the belts can be adjusted based on farm requirements, ensuring smooth operation without bottlenecks.

• The conveyor belts can transport up to 3,000-10,000 chickens per hour, significantly reducing the time and labor involved in manual harvesting.

(2) Horizontal Lift Equipment

3. Automatic Feeding, Drinking, Manure Removal Systems And Chain Harvest Systems

The automatic harvest H frame battery cage systesm for broiler automated feeding and drinking systems ensure that every bird receives the right amount of food and water, promoting healthy growth and optimizing feed efficiency. The system works as follows:

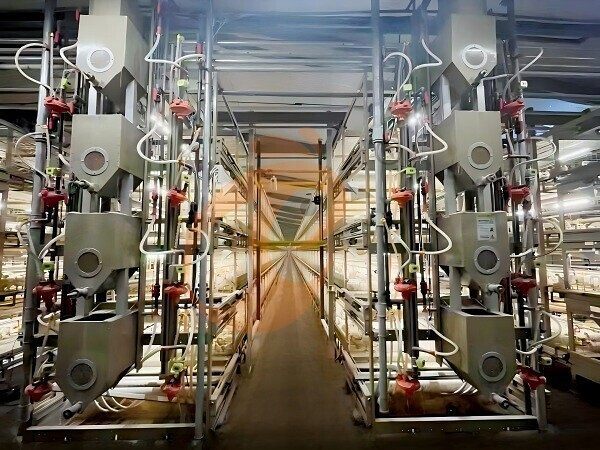

(1) Automatic Feeding System

• The feeding system is designed to deliver accurate amounts of feed to each bird, with the ability to adjust feed quantities based on the birds' age and size.

• The feed can be delivered at rates of up to 500 kg/h, ensuring that every bird is properly nourished.

• Each bird consumes an average of 150-200g of feed per day, depending on the stage of growth, ensuring efficient use of feed.

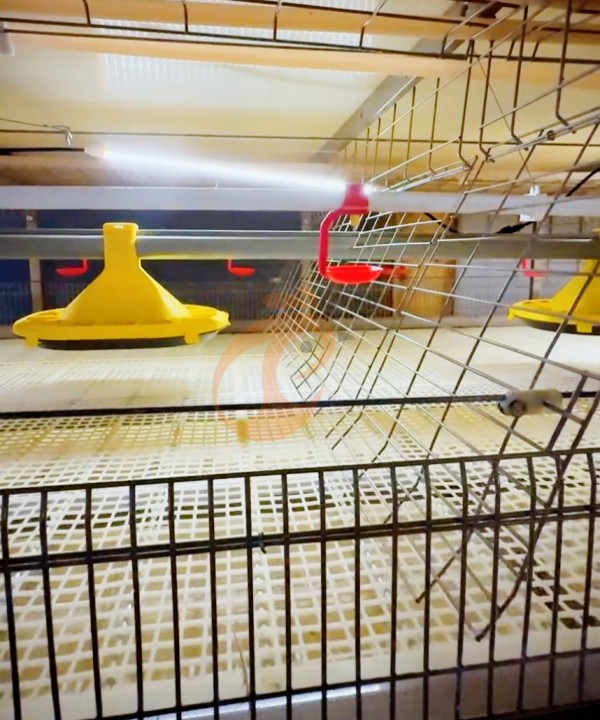

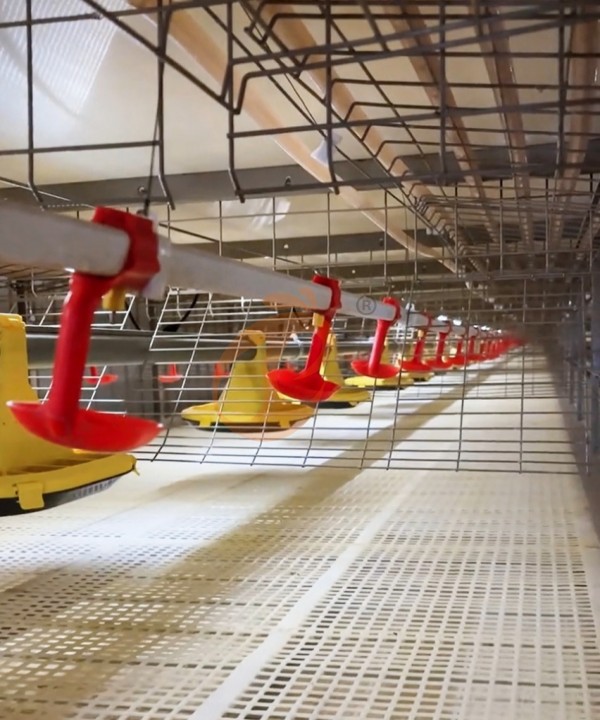

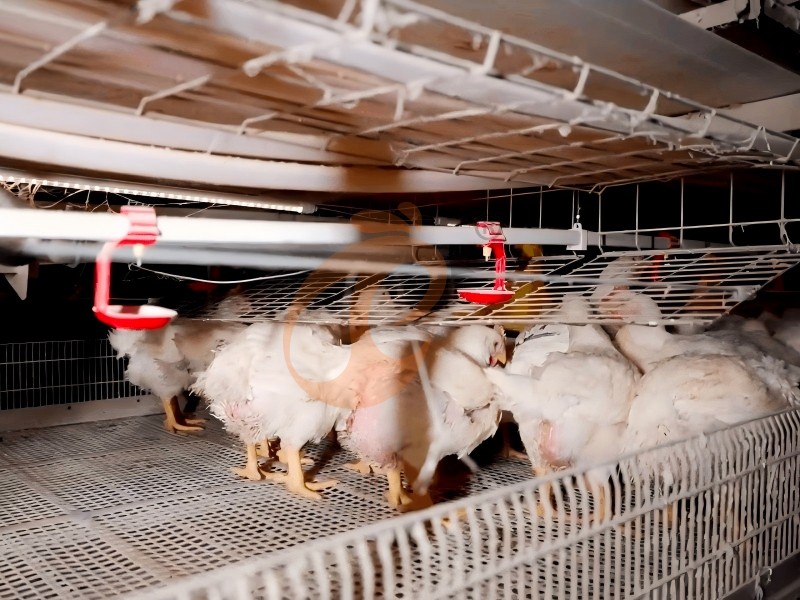

(2) Automatic Drinking System

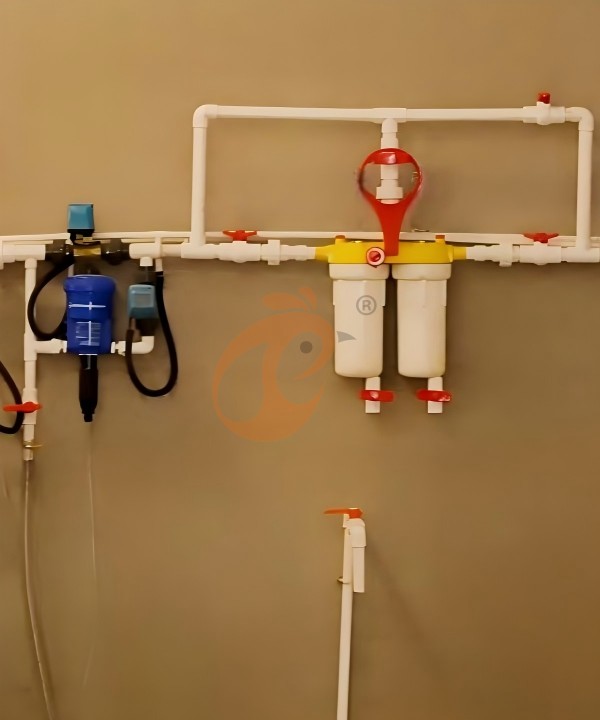

Ending Water Device

• The automatic nipple drinker system ensures that birds have continuous access to clean water. Adjust the height as chicken's age.

• Each cage is equipped with 6-12 water nipples, providing adequate water supply for up to 125 birds per tier.

• This system reduces water wastage, as each nipple delivers a precise amount of water to the birds without overflow or leakage.

(3) Automatic Manure Cleaning System

• Chicken waste is successively dropped on manure belt under bottom cage mesh, row ending manure collection equipment.

• Horizontal manure convey equipment inside chicken house, slant manure conveyor equipment outside chicken house, to the tuck finally.

• Manure cleaning belt 's speed is 15-200m per hour, depends on exact working.

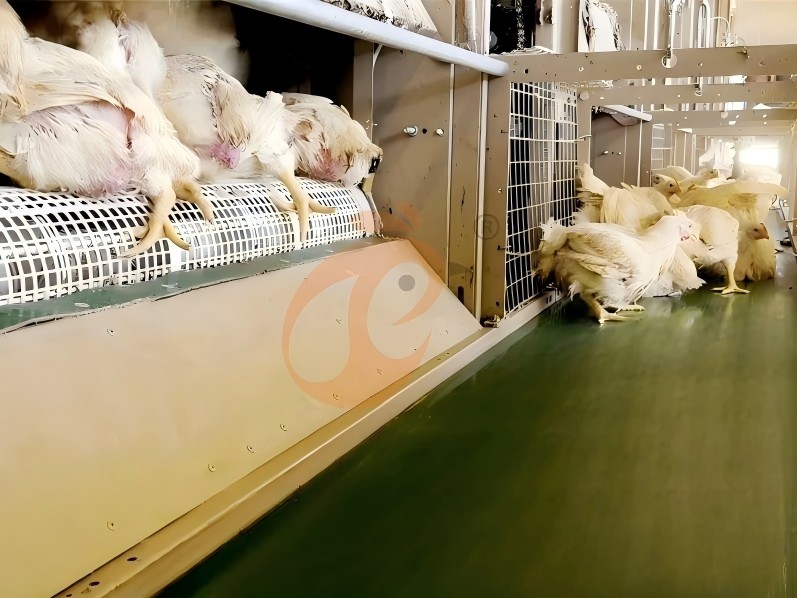

(4) Automatic Broiler Chain Harvest & Loading System

• Trigger condition: Activated after broilers reach market weight, typically 45 days

• Start sequence: Cage release → chain conveyor start → centralized harvesting

• Conveying path: Each tier → in-house chain conveyor → harvesting area

• Speed control: Adjustable according to farm capacity and loading schedule

• Capacity range: 3,000–10,000 broilers per hour

• Handling method: Continuous and non-stop conveying, no manual catching

• Lifting process: Horizontal lifting equipment connects in-house system to outside

• Loading mode: Direct loading into transport trucks

• Operation feature: Closed-loop harvesting and loading flow

"Why Choose Automatic Harvest H Frame Battery Cage System For Broiler"

4. Managing Chicks Vs. Grown Broilers

A key aspect of poultry farming is the differentiation between the management of chicks (young birds) and grown broilers (mature birds).

Though both types of chickens are housed within the same system, their care and environment management differ significantly due to their distinct physiological needs.

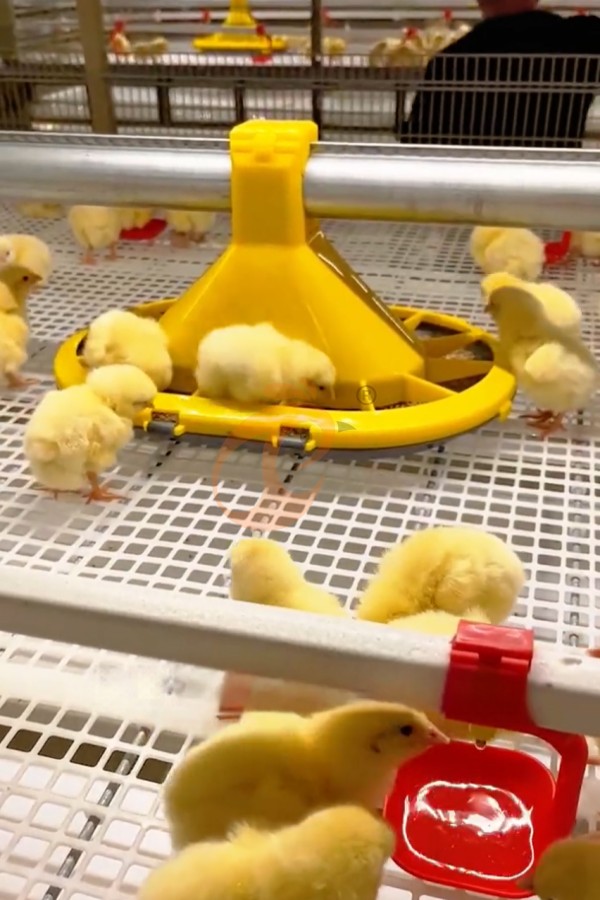

(1) Chick Care (0-14 Days)

• Temperature Requirements

  Chicks require a higher ambient temperature for proper development, typically between 32°C and 34°C during the first few days. Automated temperature control ensures that the environment is consistently warm, even when transitioning from one stage to another.

• Feeding and Watering

  For chicks, the feed size and water nipple height need to be adjusted for ease of access. Automated feeders are designed to cater to smaller birds and provide a constant supply of finely ground feed to facilitate early digestion.

• Lighting

  Chicks benefit from extended lighting hours in the initial stages to ensure proper feed intake and growth, with a recommended 18-20 hours of light per day.

(2) Broiler Care (15-45 Days)

• Temperature Requirements

  As broilers mature, their temperature requirements decrease. The ambient temperature is gradually reduced to around 21°C to 24°C to avoid heat stress.

• Feeding and Watering

  An broiler chicken cage design require larger quantities of feed, and the feed delivery system can be adjusted to ensure they consume the correct amounts for optimal growth. The nipple drinkers are adjusted to cater to the drinking habits of larger birds.

• Lighting

  At this stage, 16 hours of light per day is sufficient to maintain healthy metabolism and encourage feeding.

The automation in the H-type broiler chicken cage design provides precise control over these variables, ensuring that the needs of both chicks and mature birds are met at each stage of their development.

5. Recommendation Farm Management Of Poultry Farm, House And Cage System (selective assembly)

(1) From CCTV to giving order to every house, from date collection to AI data analysis report, abnormal condition detection and alarm system.

(2) Lighting is provided for chickens of all ages, which enhances their immunity and increases their productivity.

(3) One-stop management and control, continuously enhancing farm profits.

(4) Warm device gives a temperature of 28℃-37℃ to baby chicken according to its different age.

(5) Cooling device gives a temperature 18℃-27℃ to older chicken according to its different age.

(6) Humidity device gives a humidity 40%-70% to chicken according to its different age.

Please contact us to give your exact solution according to your breeding quantity and farm condition.
