10,000 - 20,000 Chickens Poultry House Design Drawing
Taiyu (HK) Group 10,000 Chickens Poultry House Design Drawing
We offer turnkey engineering solutions, operation, production, quotation installation and long-term maintenance of poultry farm.
Slide the table left and right to view the full content.
Category | Parameter | Customer Input |
Poultry House Information | Poultry type | Layer |
House type | Closed house |
House dimensions | L × W × H: 80.1 × 9 × 3.5(m) |
House floor area | Total 720.9 (㎡) |
House orientation | East–West / North–South |
Production Capacity | Planned bird capacity | 10,000 birds |
Equipment system | Cage system |
Cage tiers | 4 tiers |
Birds per set | 160 birds/set |
Cage System | Cage size | L × W × H: 2.2 × 2.7 × 2.5 (m) |
Cage material | Hot-dip galvanized wire / Al-Mg alloy wire / Stainless steel wire |
Cage quantity | 63 sets |
Feeding System | Feeding method | Fully automatic |
Feed silo | Yes |
Feed transport | Auger feeding or Chain feeding |
Drinking System | Drinking system | Nipple drinker |
Nipple ratio | 2–4 birds per nipple |
Water system components | Filter, medicator |
Manure Removal System | Cleaning method | Automatic |
Manure conveying | Scraper system |
Egg Collection System | Egg collection method | Automatic |
Egg collection equipment | Egg belt +Central egg collection line |
Egg collection area | Egg collection room |
Ventilation & Cooling System | Ventilation type | Open house: Natural ventilation |
Closed house: Mechanical ventilation |

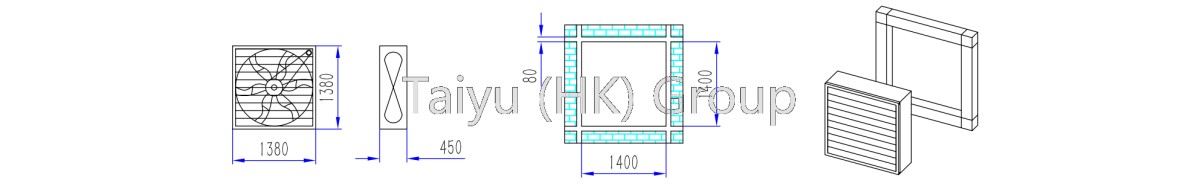

Cooling equipment | Exhaust fans, cooling pads, air deflectors, air inlets |
Lighting System | Lighting type | LED lighting |
Lighting control | Manual or automatic lighting control |
Smart Control System | Control system | Automatic environmental controller |
Controlled equipment | Fans, cooling pads, lighting, heating, etc. |
Remote access | Computer, iPad, Mobile APP |
Alarm system | Power failure, high temperature, equipment fault alarms |
CCTV Monitoring System | Monitoring locations | Poultry house, feed silo area, egg room, entrance, etc. |
Storage system | Network Video Recorder (NVR) |
Main components | Cameras, cables, signal transmitters |
Remote viewing | Computer, iPad, Mobile APP |
Auxiliary Systems | Heating system | Required when indoor temperature is below 20°C |
Power supply | Distribution cabinet, backup generator |

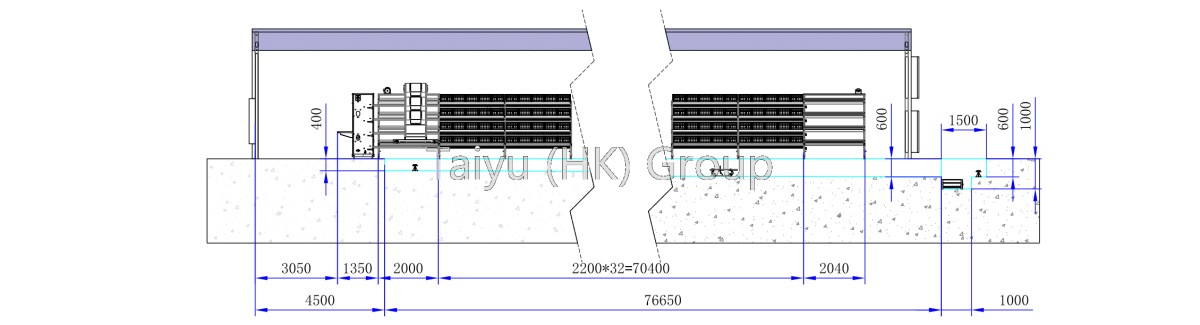

Taiyu (HK) Group 15,000 Chickens Poultry House Design Drawing
Slide the table left and right to view the full content.
Category | Parameter | Customer Input |
Poultry House Information | Poultry type | Layer |
House type | Closed house |

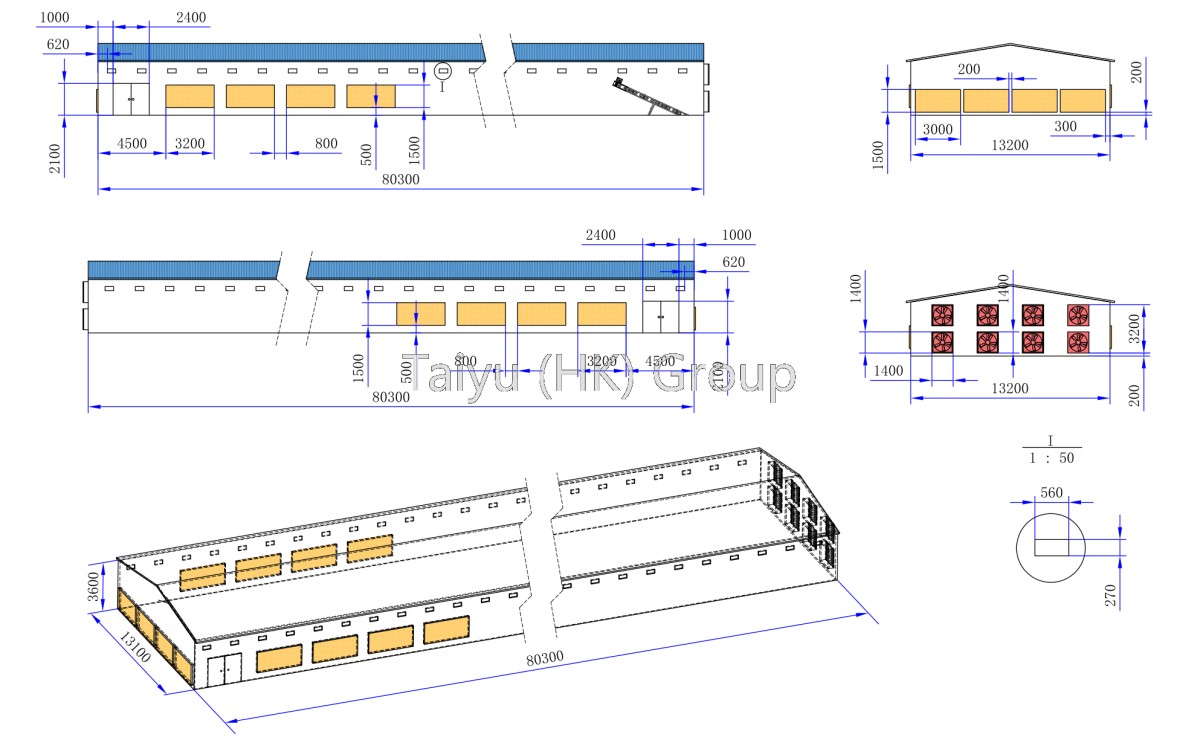

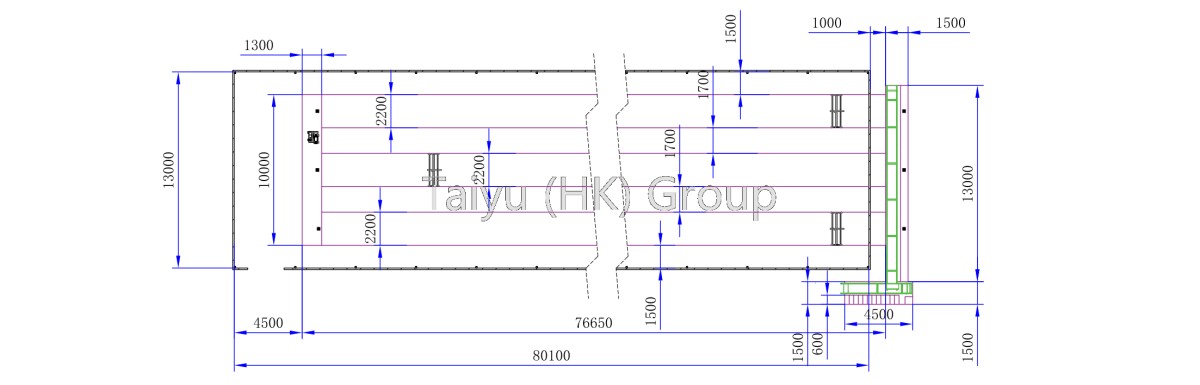

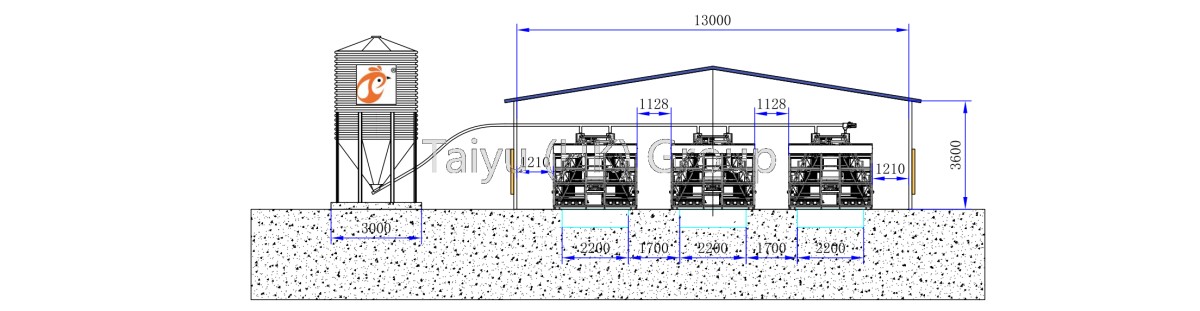

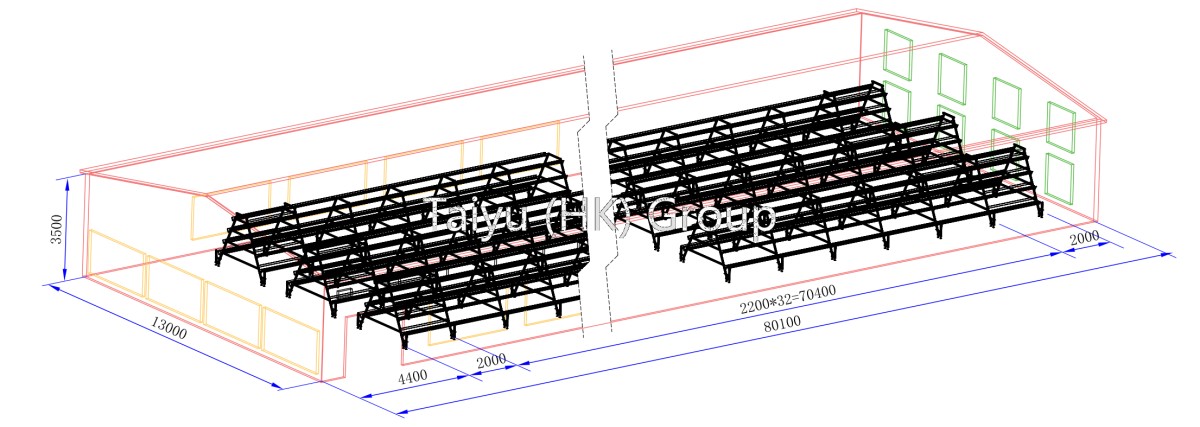

House dimensions | L × W × H: 80.1 × 13 × 3.5(m) |
House floor area | Total 1,041.3 (㎡) |
House orientation | East–West / North–South |
Production Capacity | Planned bird capacity | 15,000 birds |
Equipment system | Cage system |
Cage tiers | 4 tiers |
Birds per set | 160 birds/set |

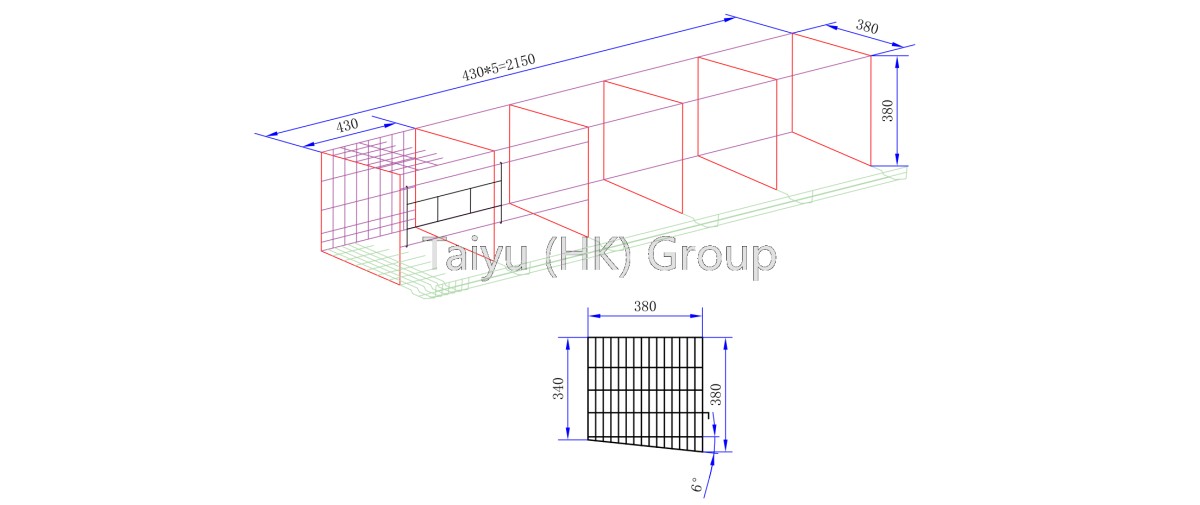

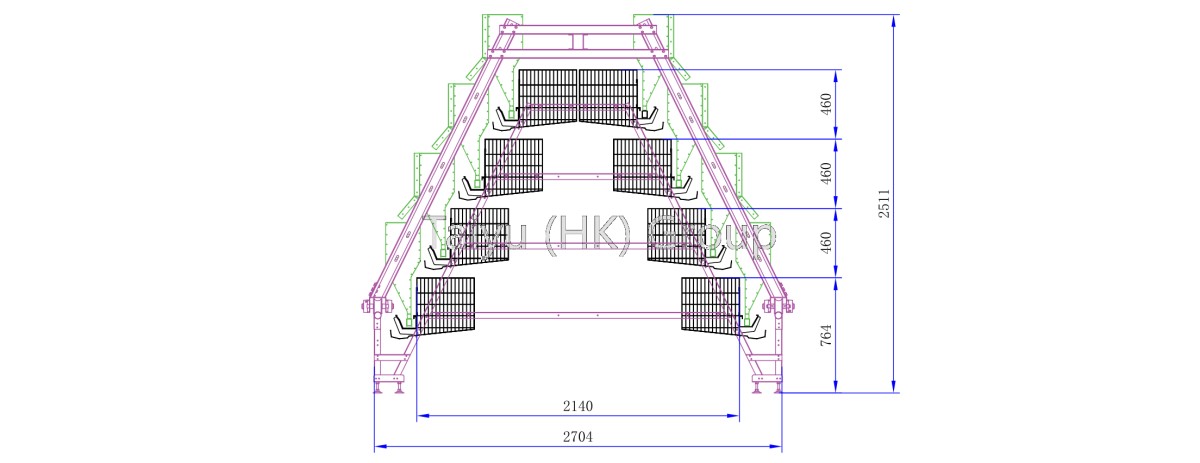

Cage System | Cage size | L × W × H: 2.2 × 2.7 × 2.5 (m) |
Cage material | Hot-dip galvanized wire / Al-Mg alloy wire / Stainless steel wire |
Cage quantity | 94 sets |
Feeding System | Feeding method | Fully automatic |
Feed silo | Yes |
Feed transport | Auger feeding or Chain feeding |
Drinking System | Drinking system | Nipple drinker |
Nipple ratio | 2–4 birds per nipple |
Water system components | Filter, medicator |
Manure Removal System | Cleaning method | Automatic |
Manure conveying | Scraper system |
Egg Collection System | Egg collection method | Automatic |
Egg collection equipment | Egg belt +Central egg collection line |
Egg collection area | Egg collection room |
Ventilation & Cooling System | Ventilation type | Open house: Natural ventilation |
Closed house: Mechanical ventilation |
Cooling equipment | Exhaust fans, cooling pads, air deflectors, air inlets |
Lighting System | Lighting type | LED lighting |
Lighting control | Manual or automatic lighting control |
Smart Control System | Control system | Automatic environmental controller |
Controlled equipment | Fans, cooling pads, lighting, heating, etc. |
Remote access | Computer, iPad, Mobile APP |
Alarm system | Power failure, high temperature, equipment fault alarms |
CCTV Monitoring System | Monitoring locations | Poultry house, feed silo area, egg room, entrance, etc. |
Storage system | Network Video Recorder (NVR) |
Main components | Cameras, cables, signal transmitters |
Remote viewing | Computer, iPad, Mobile APP |
Auxiliary Systems | Heating system | Required when indoor temperature is below 20°C |
Power supply | Distribution cabinet, backup generator |
