Basic information

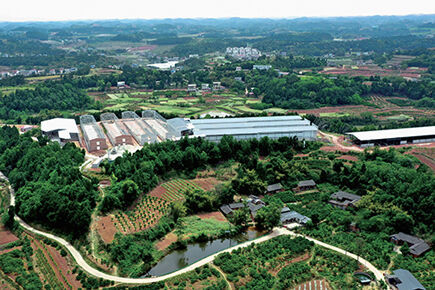

Best finished 7 poultry chicken farm houses with poultry cage. This poultry farm is located in one of the popular province and the project started early last year, the design of the chicken house is 100 by 15 by 6.5 meters, capacity is 75,600 birds per house. The overall design has 7 chicken coops, total breeding capacity is 520,000 birds, and now two chicken coops have been completed. The poultry house is equipped with fully automatic system

We designed an intelligent factory for the farm. According to the farm land and overall planning, we customized a central egg conveyor system for the farm, using automated equipment to comprehensively improve the production efficiency of the farm. Poultry layer cage comes with different components that make the whole machine to discharge various duties with little or no effort

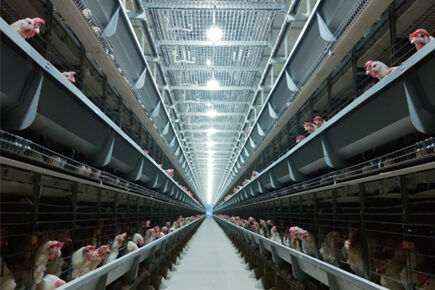

The poultry cage system is used in housing chickens that are laying eggs and this type of chicken’s are called the layers, they are used in different part of the countries, the reason is that the design of the layer cage provides a comfortable environment for the chicken. The poultry layer cage currently produced is goes through a hot-dip galvanizing process which is commonly used to make chickens play a better role in the more reflected in these aspects feeding process

Poultry layer cage is a kind of poultry cage, it is designed to confine the laying hens to lay eggs in cages, which is convenient for poultry farmers to raise chickens and collect eggs, the cages used in a poultry farm are usually layer cage system for the purpose of centralized management of laying hens and increasing egg production

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. The whole system includes exhaust fan, cooling pad, deflector, air-inlet windows

2. Exhaust fan and cooling pad can maintain optimum temperature range (13″C -26″C), best is 22C. Proper temperature can improve the feed conversion ratio, increase egg production

3. Above 26 degrees, it will increase the difficulty for chickens to dissipate heat, which will lead to stress response and increase mortality

4. Above 43″C, all the chickens will die. Exhaust fan and air-inlet windows make sure fresh air come in, and bring out the harmful gas like ammonia gas, ammonia gas which will cause respiratory disease

5. Deflectors change cool air direction, to prevent chickens from catching cold

Advantages

1. High level of automation

It consists of fully automatic feeding, drinking water, manure removal, cooling of cooling curtains, standardized management, automatic control system, saving energy consumption, improving labor efficiency, reducing manual service feeding costs, and further improving the farm’s High efficiency of feeding in poultry farming equipment

2. Good epidemic and reasonable prevention of diseases

The chickens do not touch the excrement, which can make the chickens become healthier, and show the chickens a clean and comfortable natural environment for growth and development, and the time for meat production is greatly early

3. Save places and increase the relative density of feeding

The relative density of cages is more than 3 times higher than the relative density of flat raising

4. Conservation of feeding concentrated feed

Cage farming can save a lot of feeding concentrated feed. Chickens are fed in cages, exercise intensity is reduced, energy consumption is less, and waste material is reduced. The materials show that cage keeping can reasonably save breeding costs by more than 25%

5. Durable

The complete equipment battery cage for chickens adopts hot-dip zinc processing technology, which is anti-corrosion and anti-aging, and can be used for 15 to 20 years

6. It is more convenient

The number of chickens raised can be increased three or four times than usual, greatly increasing the benefits of farmers. In addition, raising chickens in layer cages is more convenient for the management of the flock

7. It uses feeders that do not waste feed

It might appear obvious to buy feeders that minimize feed wastage, but low-cost is always an alluring factor that quite often makes us buy something less efficient in the long run. Feeders should also be managed (cleaning, placement, distances, number of birds per feeder, etc.) So that feed consumption is neither an opportunity to beat boredom nor a hurried fight to eat. Quite often a factor that greatly enhances feed efficiency is the correct placement of drinkers close to the feeders, but not so closes as to cause feed spoilage

Our services

1. We offer the detailed information about our product and services

2. We offer the best equipment which meets our customer’s every requirement

3. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solution. And customers can be rest assured

4. We give customers detailed information on the product they want to buy

5. We give guideline to our first time customer’s on how to go about their poultry farm

6. After purchasing our poultry equipment, we do follow up on our customers about the equipment they purchased

Frequently ask questions

Q: What are the types of poultry houses?

A: Broadly, poultry housing systems are classified into three system which is free range or extensive system, semi-intensive system and intensive system

Q: How does poultry cage system work?

A: The chickens are kept in cages without movement, water, feed troughs, or spawning boxes. Eggs can automatically roll out of the cage, making it easy to pick eggs. Therefore, it saves time for manure removal and other management. Generally, the elderly and women can raise them easily, and the labor efficiency is high

Q: What is the importance of proper cage arrangement?

A: Good thermoregulation is an adequate density will avoid high temperatures in the birds that generate stress and affect egg production. Access to water and food: if the number of birds per cage is ideal, they will be able to freely consume water and food, which is essential for optimal posture
