Solution

1. 4 tiers brooder raising equipment, rearing period: day 1- 100

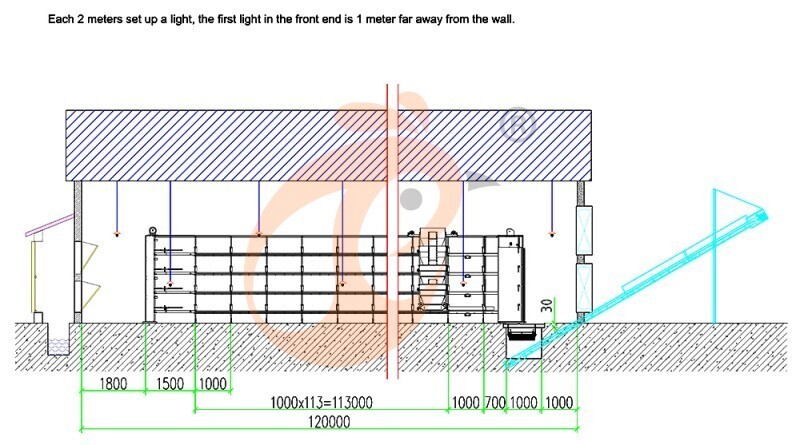

2. Chicken house dimension: 120* 8* 4 meter, 77 sets/ row* 2 rows= 154 sets/ house

3. Total birds/ house: 208 birds/ set* 154 set/ house= 32,000 birds/ house

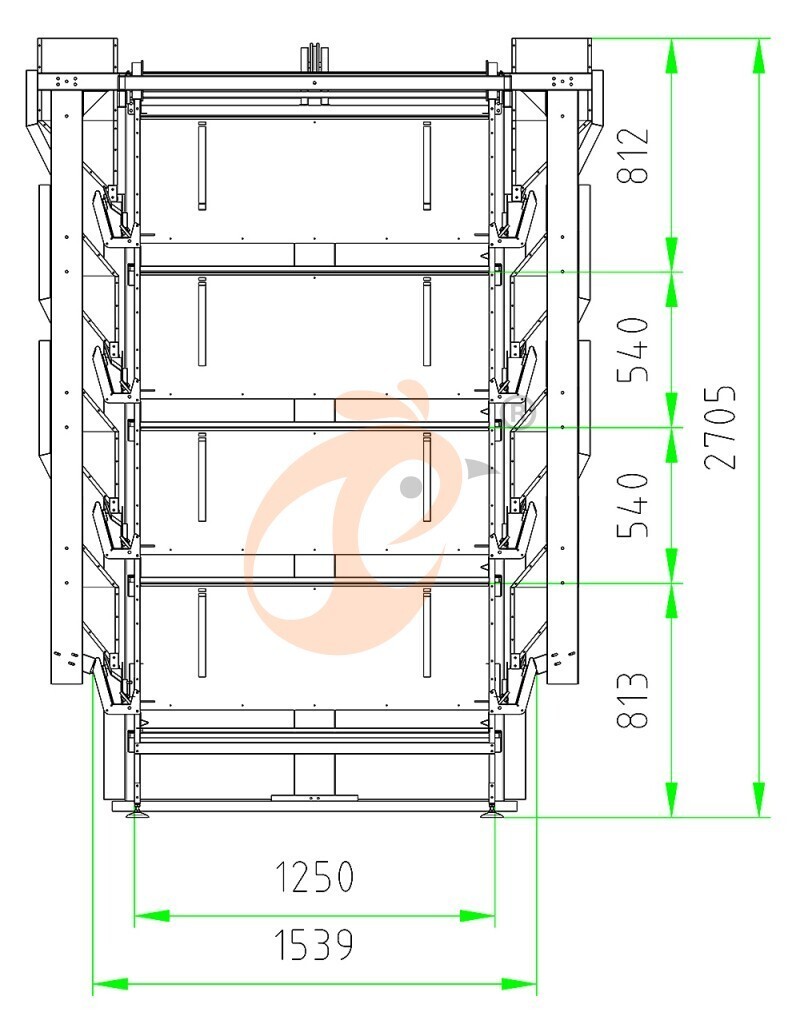

4. Cage dimension/ section (mm): length 1200* width 625* height(front part) 603

5. Average area/ bird: 60cm* 62.5cm/ 13 birds/ cell= 289 sq.cm/ bird

6. Birds/ tier= 13 birds/ cell* 4/ cells= 52 birds/ tier, 52 birds/ tier* 4 tiers/ set= 208 birds/ set

7. Electricity Instruction: ac, 3ph/ 380v, 50hz, 0.75- 2.5kw for the motors of machines

8. Fittings

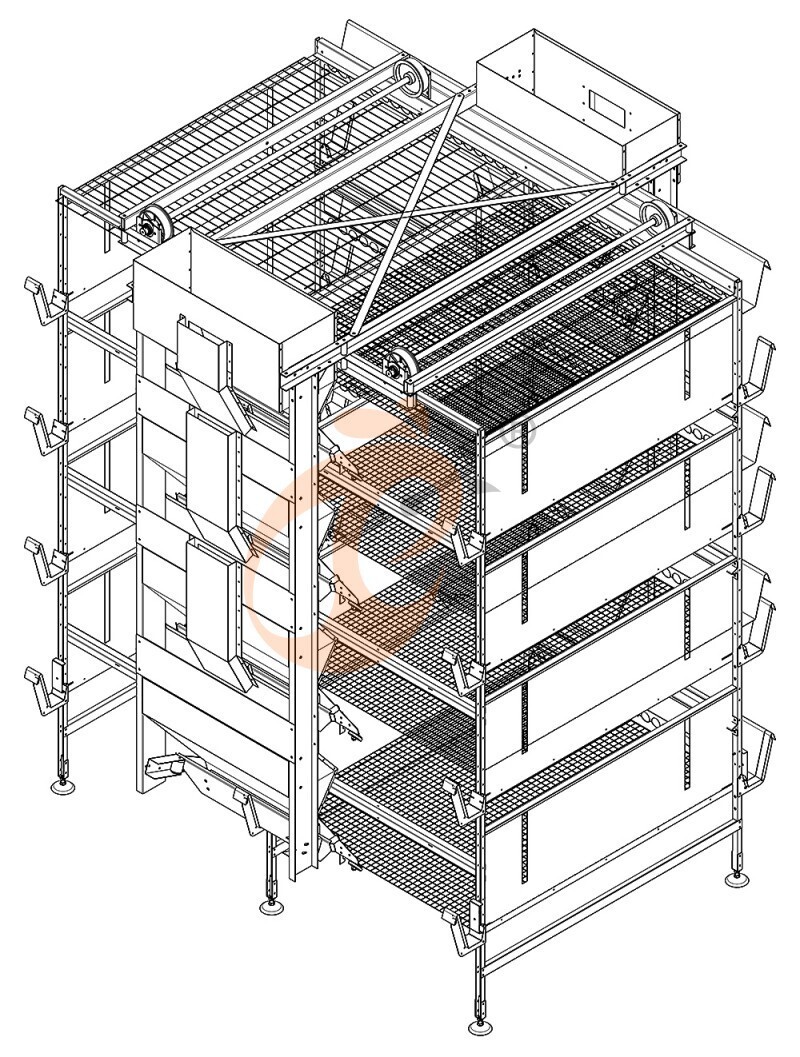

(1) Cage frame system

(2) Automatic feeding system

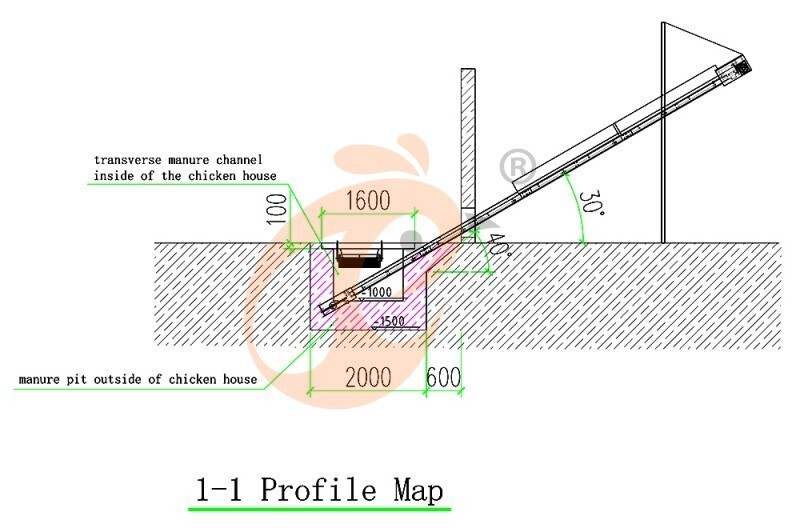

(3) Automatic manure removal system

(4) Automatic drinking system

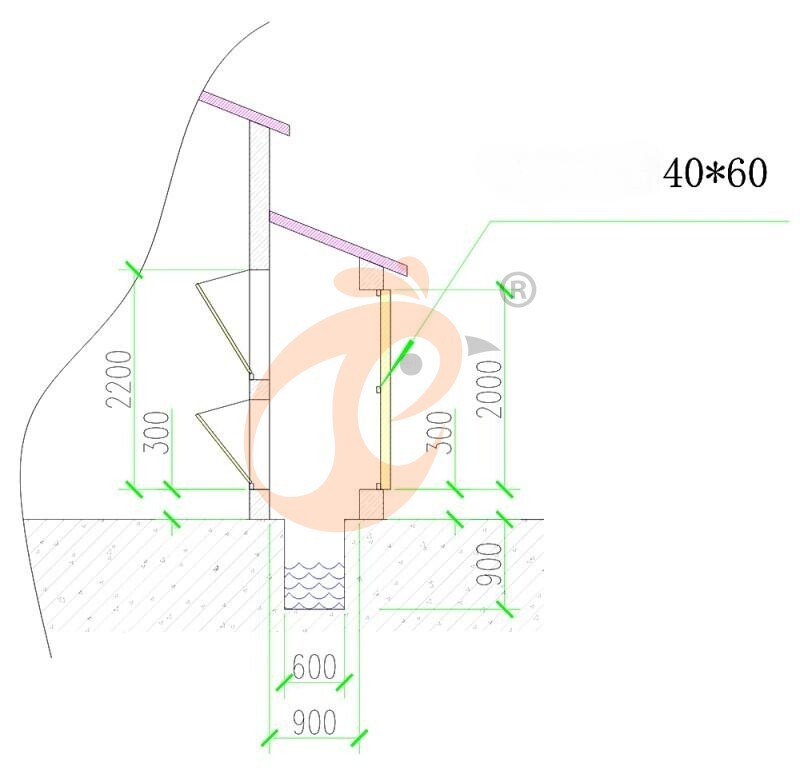

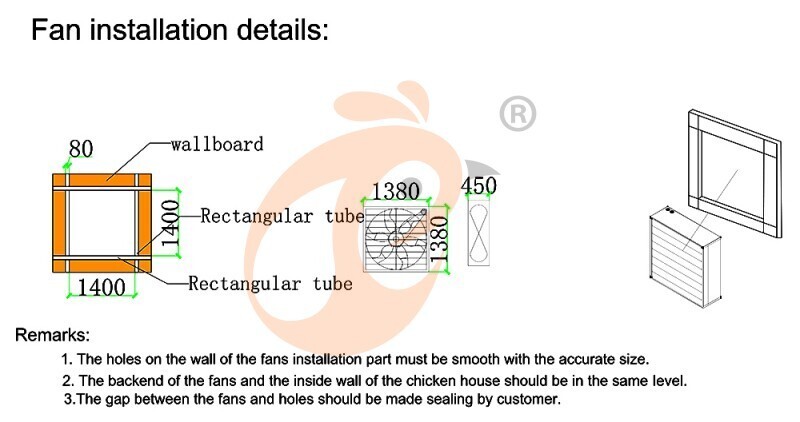

(5) Cooling system

(6) Lighting system

(7) Control system

(8) Installation tools
