Basic information

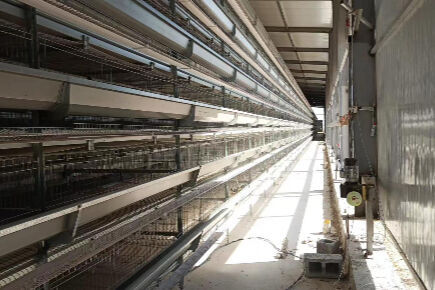

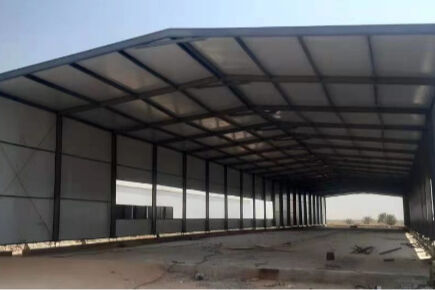

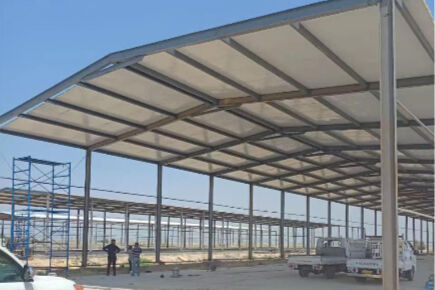

Over the years, our company finished 2 houses layer cage equipment in Iraq area. Iraq belongs to desert region with high temperatures in summer, so it is very important to have a good ventilation system for chicken house.  The layer house size is 100 x 16.4 x 6.4 meters, choose 5 rows 6 tiers 1800 layer cage, keep 73440 birds layer in one house

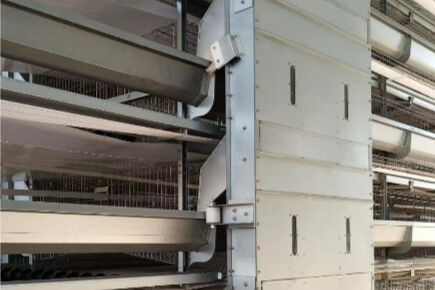

This project will choose automatic egg collection system, all houses eggs will transport from cage to egg house by egg collection system and let consumers be the first person to touch eggs, then the egg moves along the inclined conveyor portion and arrives at the stacking table, when out of operation, the crosswise conveyor rests at the upper level in order to avoid interference with the personnel activities. The lengthwise belts may operate at different speed rates

The speed rate is selected by the poultry farm personnel depending on the egg-laying performance of the flock and the cross-wise conveyor utilization level. In order to prevent egg contamination during handling at the egg collection belt, the equipment incorporates a dedicated lengthwise belt cleaning brush with the waste container. The lift-based egg collection system may be integrated into the general egg-handling system of the poultry farm

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1.Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2.Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3.Pullet chicken cage

 96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4.Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5.Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6.Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. Automatic egg collection system is suitable for large, medium and small farms, and can be customized according to user requirements to meet production needs

Automatic egg collection system have the function of preventing the eggs from falling and breaking, which can reduce the expenditure of manpower and material resources, and at the same time reduce the breakage rate of the eggs, improve the quality and efficiency of the egg collection, and is suitable for various large-scale chicken farms

3. The electrified machine has scientific, mechanized, automated, and intensive benefits

4. Greatly improves the degree of automation, improves efficiency, and saves labor costs

5. Low noise during operation, which reduces the noise influence on chickens and improves the rate of laying

6. The machine runs smoothly, improving the efficiency of production

7. It reduces the rate of broken eggs and increases the bottom line

8. Operation of the machine is simple which saves the manpower

Components

1. Automatic egg collection

Automatic egg collection uses an automatic tray which employs a mechanical system powered by energy which collects the egg that has rolled to the front of the cage, and moves it to a collection point for identification, classification and packaging. Its proper functioning should be constantly checked, and periodic maintenance must be carried out, the egg production cycle to ensure good efficiency, high quality, and safety, it is an important step to the egg collection

2. Ventilation system

This system creates a stable temperature and enough ventilation for the chicken house. It helps in controlling the system and management of the growths of the chicken. All that is required to do is to ensure that you have a proper consideration of the type of environment needed, the corresponding data for the controlling system, and control of all the equipment and also ensure 24 hours real time monitoring on the poultry farm. For the closed chicken house, adopt cooling pads that can lower the house temperature

3. Manure removal system

The manure removal system is specially developed for layer chicken cage farms. The

Manure removal system directly transfers the chicken manure outside the chicken house and helps in the reduction of smell from the chicken house, it provides a clean and comfortable growing environment for the chicken, chicken to epidemic prevention effect to reduce the incidence of disease, while saving labour costs, save time and effort to improve the efficiency of breeding, this is the magic power of conveyor belt manure machine

Our services

1. We offer the best equipment which can meet our customers every requirement

2. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured

3. We offer excellent services in all our equipment

4. We give customers detailed information on the product they want to buy

5. We recommend suitable products based on customer’s availability resources

6. Installation team come for installation after customers have received the goods

Frequently ask questions

Q: How can i maintain an automatic egg collection system?

A: Ensure to carry out a proper periodic cleaning and disinfection inside the vehicles used to transport eggs to avoid contamination of these during the trip

Q: What is a layer cage?

A: Layer cage is galvanized wire cages for chickens. They are used in poultry houses, specifically layer houses, for the easy management of hens and the eggs they lay

Q: Is there a particular location the egg collection system should be situated at?

A: The system does not actually have a fixed location. It is mainly installed according to the needs of customers
