Basic information

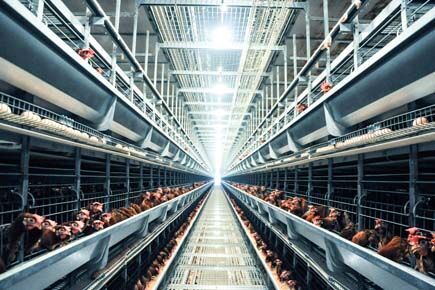

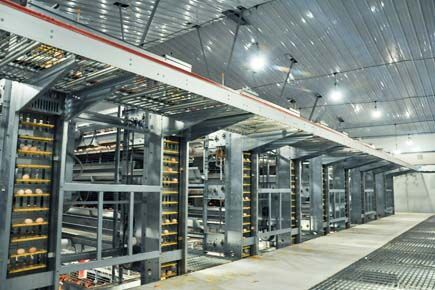

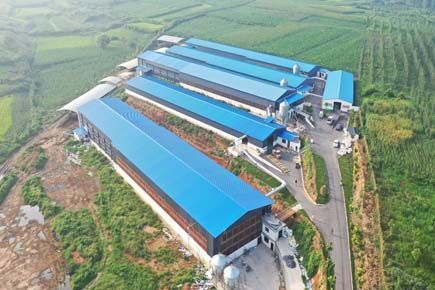

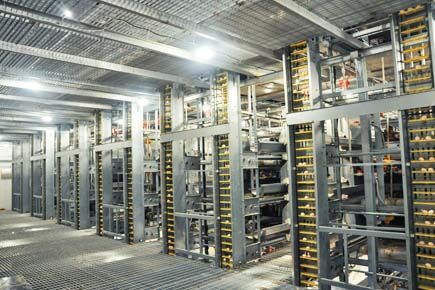

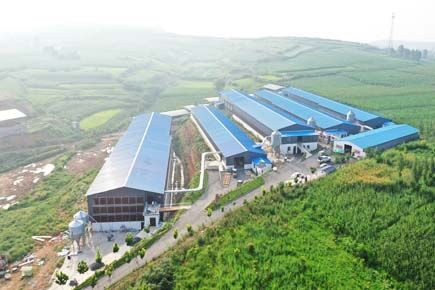

This layer farm project is established to raise about 1,000,000 layers with a land space of 30,000 square meters. Considering the limited land space, with our design and equipment, this project and has already build 4 layer houses, with a total capacity of 340,000 layers, after 4 years development. The 4 layer houses in this farm is equipped with our 5 rows 5 tiers, 6 rows 8 tiers, and 6 rows 9 tiers layer cage equipment

Layer chicken cage is made up of 2 parts the starter section, which has the medication tanks, and supplies water to the rest of the layer cages, and follower sections. You can add as many follower sections to a starter section as you wish (the length of the house will limit more follower layer cages. This kind of business has a very large investment which is included with housing for chickens, layer platforms, feeding, water, electricity, anti-fungal infection medicine

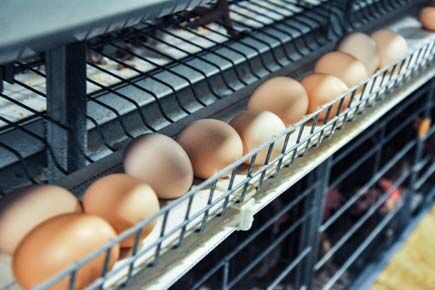

A layer chicken cage has a nipple drinking systems included in the cages - these allow the chickens to get water by pecking at a nipple. A trough runs along the length of the layer cage which makes feeding the hens very easy. The floors of layer chicken cages are sloped so that eggs roll down toward the troughs on one end of the cage, where the eggs are then carried away via conveyor belt. A feeding trough is located on the other side of the cage, and food is generally always available to the chickens. They must push their heads and necks through the wire mesh

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

 Features

1. The whole system includes exhaust fan, cooling pad, deflector, air-inlet windows

2. Exhaust fan and cooling pad can maintain optimum temperature range (13″C -26″C), best is 22C. Proper temperature can improve the feed conversion ratio, increase egg production

3. Above 26 degrees, it will increase the difficulty for chickens to dissipate heat, which will lead to stress response and increase mortality

4. Above 43″C, all the chickens will die. Exhaust fan and air-inlet windows make sure fresh air come in, and bring out the harmful gas like ammonia gas, ammonia gas which will cause respiratory disease

5. Deflectors change cool air direction, to prevent chickens from catching cold

Necessary things to consider

1. Housing and layer platforms designing

The most important factors that decide the age of chicken farming business is the housing shelter. If your housing of hens is not satisfactory then, it is not going to be a perfect business model. You must understand that housing depending on the number of chickens (a hen). For 1,000,000 chickens a total 7000x70000 (14000) square meter area is required. Every single platform should have a rectangular or square cage. This cage system is designed in a way that when chickens produce eggs the egg slide through and ready to collect in the cage bottom

2. Feeding and water

Chicken feed must full of protein, minerals, and proper fat according to their diet. An ordinary chicken eats at least 100g to 150g of chicken feed

3. Light

The main concept of this is to provide chickens with light and heat. In summer chickens do not need any kind of electric fans to expect you to have to make the housing cold and friendly for chickens. But in winters, you need to provide the proper heat and lighting for better growth and atmosphere

Components

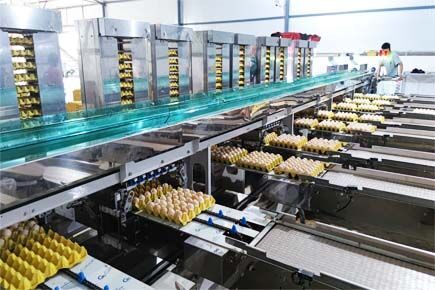

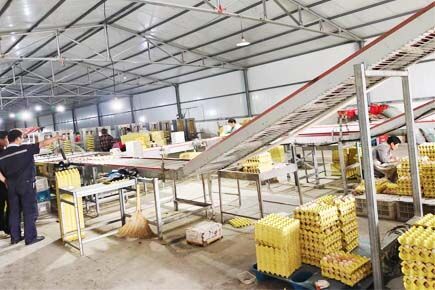

1. Automatic egg collection system and egg conveyor system

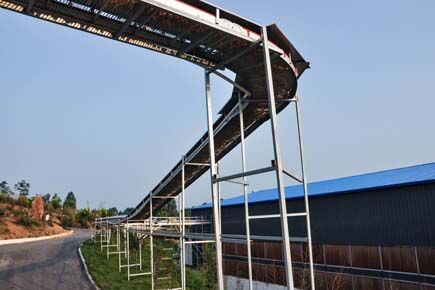

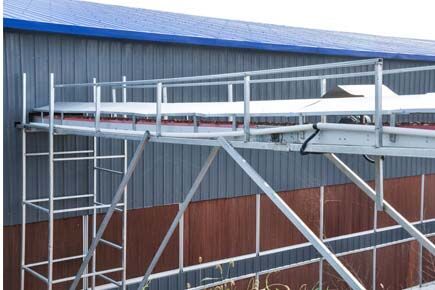

With large raising capacity, we equipped full automatic egg collection system and egg conveyor system, which helps harvest eggs high efficiently and low egg broken rate. The egg collecting system is the most versatile system in the market.  Additionally, it provides its elevator system with a higher collecting capacity by allowing the collection of eggs simultaneously from all tiers. Eggs are collected individually per tier, with a gear motor per tier, allowing a maximum flexibility to our customers’ daily egg collection. The Maximum transport distance could over one kilometre and the conveyor can be connected directly to the egg packing machine

2. Manure removal system

The manure removal system is specially developed for layer chicken cage farms. The

Manure removal system directly transfers the chicken manure outside the chicken house and helps in the reduction of smell from the chicken house, it provides a clean and comfortable growing environment for the chicken, chicken to epidemic prevention effect to reduce the incidence of disease, while saving labour costs, save time and effort to improve the efficiency of breeding, this is the magic power of conveyor belt manure machine

3. Ventilation system

This system creates a stable temperature and enough ventilation for the chicken house. It helps in controlling the system and management of the growths of the chicken. All that is required to do is to ensure that you have a proper consideration of the type of environment needed, the corresponding data for the controlling system, and control of all the equipment and also ensure 24 hours real time monitoring on the poultry farm. For the closed chicken house, adopt cooling pads that can lower the house temperature

Our services

1. We offer the best equipment which can meet our customers every requirement

2. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solutions. And customer can be rest assured

3. We offer excellent services in all our equipment

4. We give customers detailed information on the product they want to buy

5. We recommend suitable products based on customer’s availability resources

6. Installation team come for installation after customers have received the goods

Frequently ask questions

Q: What to look out for, when removing chicken manure from the automatic layer cage system?

A: When removing manure from storage, monitor toxic gas build-up and ventilate at the maximum rate to dilute these gases because they are dangerous to chickens health

Q: What can I do to avoid my layers from coming in contact with their manure?

A: Firstly, you must ensure to lift the layer cage up a little bit from the pit dug for the manure or from any material placed to hold the manure before disposal

Q: How does the layer cage help in the prevention of disease from the chicken manure?

A: The layer cage help in some many ways but one of the most important ways is that, the layer cage is made of wire mesh in which the manure can easily be passed when excreted by the chickens
