Basic information

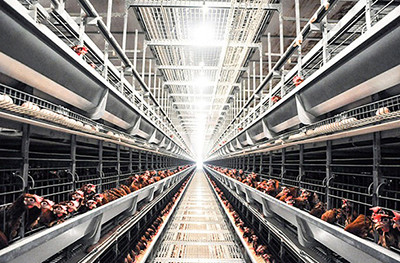

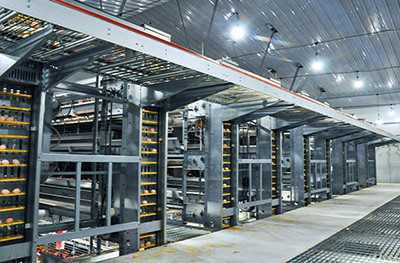

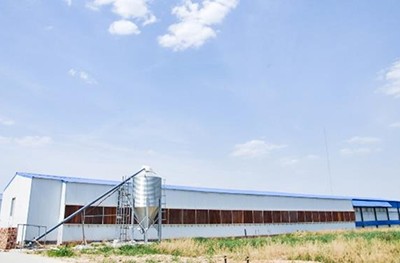

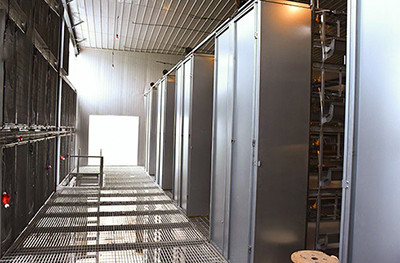

The layer house project size is as follows, the length is 121.0m, the width is 12.05m and the height is 3.02m, the first floor is steel structure, the ground floor is 1.06m with concrete structure. The poultry house is constructed in a way that the chicken manure can drop directly into the ground. This layer project of 60,000 birds is carried out in South-east Asia. During hot season the temperature becomes too high for the birds, thereby causing them discomfort while during rainy season they tend to get cold easily

The cage has a long life of resistant to corrosion for up to 12 years, which helps in increasing air ventilation, prevention of disease spread among the birds and providing quality supply of feed and water. The location of the layer house should be put into consideration because of hot season and rainy season. According to the current nutritional needs and living needs in most countries, the market has continuously put forward new requirements for the development of the corresponding livestock

Luoto uses high standard raw material 275 GSM galvanized steel sheet to produce chicken cage, increasing at least 3 to 5 years using lifetime than common type in market. and manages a farm of 60,000 layers with 98% egg production rate and than 20 years plus of manufacturing poultry equipment with the support of advanced quality production technology

Specification list

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, 4 birds/cell, LXWXH/set: 2mX2.5mX2.12m, LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/set: 1.1mX2.3mX2.56m, LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/set: 1.25mX1.5mX2.9m, LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 female and 40 male/set, 4 tiers/set, 8 cells/set,  35 female and 5 male/cell, LXWXH/set: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. It always come with basket in which at the point of laying eggs, their eggs can roll layers can only be kept in their cage at the point of laying eggs

2. The layer chicken cage helps you keep birds within a small space and allows very limited movement. This makes the chickens conserve their energy and hence enjoy an increase in production level

3. It provides comfort and stability for the birds

4. Feeds are less consumed and it avoids wastage

5. Records keeping of individual egg production and culling of poor layers are made easier

6. It is much easier to evacuate the waste in the battery cage system.  Faeces drop through to the floor or metal trays which are cleaned regularly

7. It is easier to operate

Components

1. It is constructed with galvanized steel

2. It has 8-degree floor slop for egg roll-out

3. It has a flexible cage floor

4. It has rust free PVC rail support

5. It improves manure roll off

6. The frames are sturdy with composite floor

Advantages

1. The feeders do not waste feed

It might appear obvious to buy feeders that minimize feed wastage, but low-cost is always an alluring factor that quite often makes us buy something less efficient in the long run. Feeders should also be managed (cleaning, placement, distances, number of birds per feeder, etc.) So that feed consumption is neither an opportunity to beat boredom nor a hurried fight to eat. Quite often a factor that greatly enhances feed efficiency is the correct placement of drinkers close to the feeders, but not so close as to cause feed spoilage

2. It helps to keep the birds healthy

One of the obvious observation, but it is always worth repeating, sick birds do not grow, and if they do not grow, feed efficiency is never ideal. Sick or subclinical affected birds do not eat as much as healthy birds and what they eat usually goes to fighting off the disease. In addition, they might even break down muscle proteins, which reduces their body weight, making feed efficiency the worst possible. In contrast, healthy birds, especially those with a very healthy digestive system, will utilize nutrients in the feed at maximal efficiency. Perhaps subclinical diseases are the worst "robbers" of feed efficiency points, if only because they go unnoticed, whereas we investigate anything else that might have caused this drop in performance

3. High level of automation

It consists of fully automatic feeding, drinking water, manure removal, cooling of cooling curtains, standardized management, automatic control system, saving energy consumption, improving labor efficiency, reducing manual service feeding costs, and further improving the farm’s High efficiency of feeding in poultry farming equipment

4. The chickens have good epidemic prevention and reasonable prevention of diseases

The chickens do not touch the excrement, which can make the chickens become healthier, and show the chickens a clean and comfortable natural environment for growth and development, and the time for meat production is greatly early

5. Save places and increase the relative density of feeding

The relative density of cages is more than 3 times higher than the relative density of flat raising

6. Conservation of feeding concentrated feed

Cage farming can save a lot of feeding concentrated feed. Chickens are fed in cages, exercise intensity is reduced, energy consumption is less, and waste material is reduced. The materials show that cage keeping can reasonably save breeding costs by more than 25%

7. It is more convenient

The number of chickens raised can be increased three or four times than usual, greatly increasing the benefits of farmers. In addition, raising chickens in layer cages is more convenient for the management of the flock

Our services

1.  We offer detailed information about our product and services

2. We offer the best equipment which meets our customer’s every requirement

3. We have long time and rich experience on the products manufacturing. If any machine operation questions after sales, we will reply you within 24 hours with solution. And customers can be rest assured

4. We give customers detailed information on the product they want to buy

5. We give guideline to our first time customer’s on how to go about their poultry farm

6. After purchasing our poultry equipment, we do follow up on our customers about the equipment they purchased

Frequently ask questions

Q: what is to be considered when constructing a poultry house?

A: the major things you have to look out for is to know the size of land that can contain the amount of birds you want to rear, the location and the environment

Q: How can one prevent feed from wasting in layer chicken cage?

A: First, you need  to have a particular measurement of feed you give to them on a daily or weekly bases in other not to over load the feeding trough, thereby causing feed spillage

Q: What is the best way for feeding the layers?

A: The best way is to use a feeding trough because it helps them to get a better access to the feeds

Q: Is it necessarily important to disinfect the layer chicken cage?

A: Yes, it is important to disinfect layer chicken cage so as to avoid the chickens from getting infected
